Model-led selection
Capacity, outside diameter, working pressure and steel grade are selected around the required gas service.
QDBG CHINAGas cylinders & gas equipmentRequest a Quote High-pressure gas storage
Product family 01Seamless Steel Gas Cylinders
QDBG CHINA supplies seamless steel gas cylinders in a broad range of capacities, diameters and pressure classes. Gas service, material, thread, valve, marking and certification are confirmed for every project before quotation.
Real QDBG product photographyProduct overview
Configured to the application—not selected from a label alone.
Select the cylinder family by gas service, water capacity, working pressure, diameter and destination-market standard. Key catalog models remain available through the capacity pages below.
Valve configuration
CGA, QF and other approved valve interfaces can be matched to the selected cylinder and destination market.

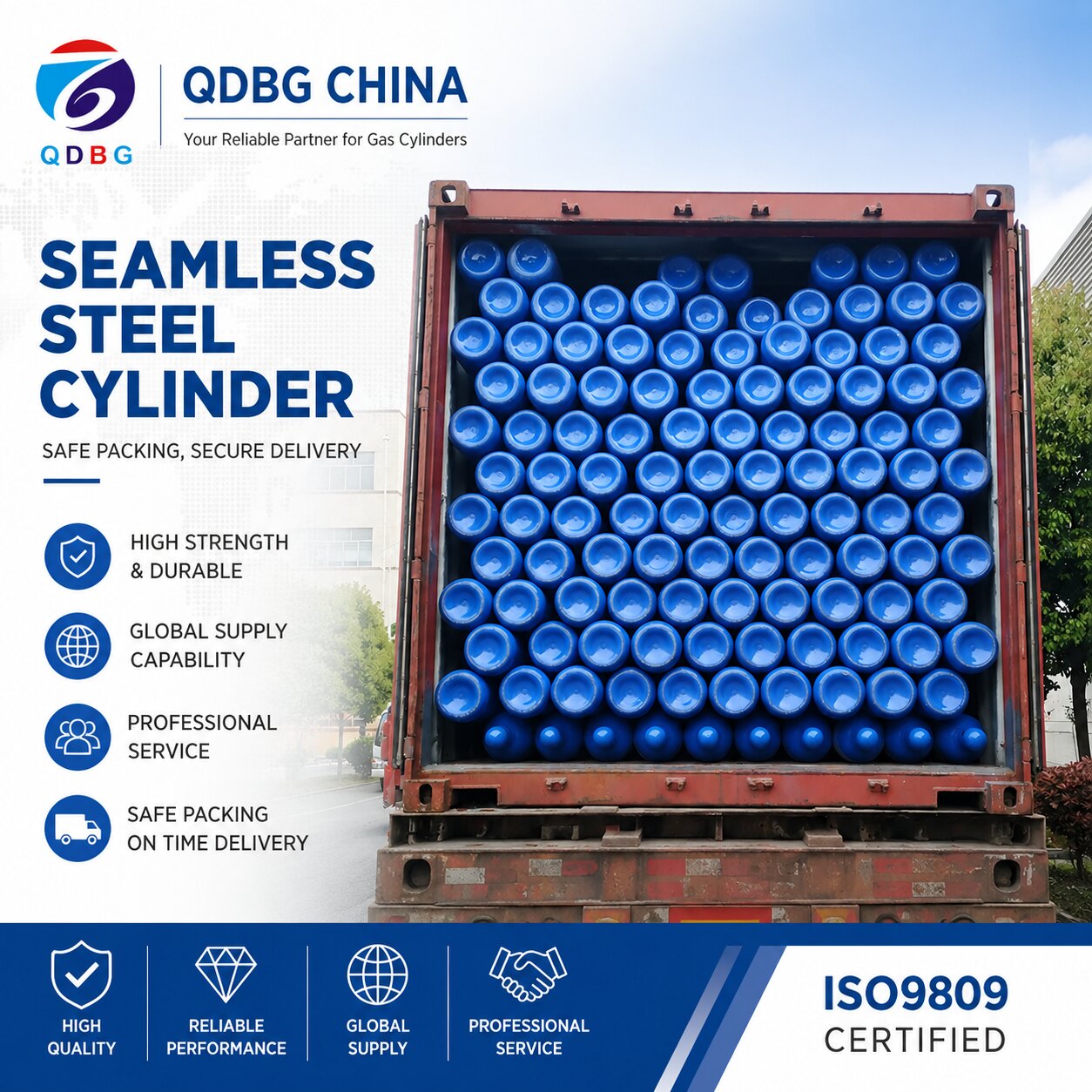

Export preparation
Permanent marking, colour, protective cap, packing and technical documents are confirmed before production.
Product / series range
Choose the relevant supply path.
Use these series as a starting point. Final technical values are confirmed against the selected model and destination requirements.
01
150 bar cylinders
Common industrial and medical gas configurations, selected by model.
View pressure pathway →02200 bar cylinders
Higher-pressure models for compatible gas services and applications.
View pressure pathway →03250–300 bar cylinders
Selected high-pressure models; final values follow the confirmed model.
View pressure pathway →150 bar cylinders
Common industrial and medical gas configurations
200 bar cylinders
Confirmed high-pressure seamless cylinder series
250–300 bar cylinders
Selected higher-pressure configurations by model
Technical product range
Compare seamless cylinders by diameter series.
Compare general, large-capacity and international-standard configurations by capacity, dimensions, pressure rating, material and standard.
1.5–150 L across confirmed catalog families
Available diameter platforms extend from Ø108 mm to Ø356 mm. Working-pressure families include 150, 166.7, 200, 230, 250 and 300 bar options by model, material and applicable standard.
Discuss your cylinder requirement →Small & mediumØ108–180 mmPortable and medium-capacity cylinder platforms
Industrial rangeØ203–232 mmCommon industrial and medical gas formats
Large capacityØ267–356 mmHigher-volume gas storage configurations
General and large seamless cylinder series
470 listed configurationsØ108 mm series1.5–5 L · 9 configurations
| Capacity (L) | Height* (mm) | Weight* (kg) | Working pressure | Test pressure | Wall (mm) | Material | Standard |
|---|---|---|---|---|---|---|---|
| 1.5 | 280 | 3.7 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 3.2 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 2 | 340 | 4.3 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 3.2 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 2.5 | 400 | 4.9 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 3.2 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 3 | 460 | 5.5 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 3.2 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 3.4 | 510 | 6.1 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 3.2 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 3.5 | 520 | 6.3 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 3.2 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 4 | 580 | 6.8 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 3.2 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 4.5 | 650 | 7.5 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 3.2 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 5 | 710 | 8.1 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 3.2 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
Ø121 mm series2.5–6.3 L · 8 configurations
| Capacity (L) | Height* (mm) | Weight* (kg) | Working pressure | Test pressure | Wall (mm) | Material | Standard |
|---|---|---|---|---|---|---|---|
| 2.5 | 330 | 4.7 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 3.2 | 37Mn | GB/T 5099.3-15MPa |
| 3 | 380 | 5.3 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 3.2 | 37Mn | GB/T 5099.3-15MPa |
| 3.2 | 400 | 5.5 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 3.2 | 37Mn | GB/T 5099.3-15MPa |
| 4 | 480 | 6.5 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 3.2 | 37Mn | GB/T 5099.3-15MPa |
| 4.5 | 530 | 7.1 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 3.2 | 37Mn | GB/T 5099.3-15MPa |
| 5 | 580 | 7.6 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 3.2 | 37Mn | GB/T 5099.3-15MPa |
| 6 | 680 | 8.8 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 3.2 | 37Mn | GB/T 5099.3-15MPa |
| 6.3 | 710 | 9.1 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 3.2 | 37Mn | GB/T 5099.3-15MPa |
Ø140 mm series2–15 L · 39 configurations
| Capacity (L) | Height* (mm) | Weight* (kg) | Working pressure | Test pressure | Wall (mm) | Material | Standard |
|---|---|---|---|---|---|---|---|
| 3 | 350 | 5.6 | 15 MPa / 150-166.7 bar | 22.5 MPa (250 bar) | 3.6 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 4 | 400 | 6.6 | 15 MPa / 150-166.7 bar | 22.5 MPa (250 bar) | 3.6 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 5 | 470 | 7.6 | 15 MPa / 150-166.7 bar | 22.5 MPa (250 bar) | 3.6 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 6 | 540 | 8.6 | 15 MPa / 150-166.7 bar | 22.5 MPa (250 bar) | 3.6 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 6.7 | 595 | 9.3 | 15 MPa / 150-166.7 bar | 22.5 MPa (250 bar) | 3.6 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 7 | 615 | 9.6 | 15 MPa / 150-166.7 bar | 22.5 MPa (250 bar) | 3.6 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 8 | 685 | 10.6 | 15 MPa / 150-166.7 bar | 22.5 MPa (250 bar) | 3.6 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 9 | 755 | 11.6 | 15 MPa / 150-166.7 bar | 22.5 MPa (250 bar) | 3.6 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 10 | 835 | 12.6 | 15 MPa / 150-166.7 bar | 22.5 MPa (250 bar) | 3.6 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 11 | 900 | 13.6 | 15 MPa / 150-166.7 bar | 22.5 MPa (250 bar) | 3.6 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 12 | 960 | 14.6 | 15 MPa / 150-166.7 bar | 22.5 MPa (250 bar) | 3.6 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 13 | 1030 | 15.6 | 15 MPa / 150-166.7 bar | 22.5 MPa (250 bar) | 3.6 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 13.4 | 1050 | 16.2 | 15 MPa / 150-166.7 bar | 22.5 MPa (250 bar) | 3.6 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 14 | 1100 | 16.6 | 15 MPa / 150-166.7 bar | 22.5 MPa (250 bar) | 3.6 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 15 | 1160 | 17.6 | 15 MPa / 150-166.7 bar | 22.5 MPa (250 bar) | 3.6 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 2 | 250 | 4.5 | 150/166.7/200/210 bar | 250/250/300/315 bar | 3.5 | 34CrMo4 | ISO 9809-1 |
| 2.5 | 285 | 5 | 150/166.7/200/210 bar | 250/250/300/315 bar | 3.5 | 34CrMo4 | ISO 9809-1 |
| 3 | 320 | 5.5 | 150/166.7/200/210 bar | 250/250/300/315 bar | 3.5 | 34CrMo4 | ISO 9809-1 |
| 3.5 | 355 | 6 | 150/166.7/200/210 bar | 250/250/300/315 bar | 3.5 | 34CrMo4 | ISO 9809-1 |
| 4 | 390 | 6.5 | 150/166.7/200/210 bar | 250/250/300/315 bar | 3.5 | 34CrMo4 | ISO 9809-1 |
| 4.5 | 425 | 7 | 150/166.7/200/210 bar | 250/250/300/315 bar | 3.5 | 34CrMo4 | ISO 9809-1 |
| 5 | 460 | 7.5 | 150/166.7/200/210 bar | 250/250/300/315 bar | 3.5 | 34CrMo4 | ISO 9809-1 |
| 6 | 530 | 8.5 | 150/166.7/200/210 bar | 250/250/300/315 bar | 3.5 | 34CrMo4 | ISO 9809-1 |
| 6.3 | 550 | 8.8 | 150/166.7/200/210 bar | 250/250/300/315 bar | 3.5 | 34CrMo4 | ISO 9809-1 |
| 6.5 | 565 | 9 | 150/166.7/200/210 bar | 250/250/300/315 bar | 3.5 | 34CrMo4 | ISO 9809-1 |
| 6.67 | 575 | 9.2 | 150/166.7/200/210 bar | 250/250/300/315 bar | 3.5 | 34CrMo4 | ISO 9809-1 |
| 6.7 | 575 | 9.2 | 150/166.7/200/210 bar | 250/250/300/315 bar | 3.5 | 34CrMo4 | ISO 9809-1 |
| 6.8 | 580 | 9.3 | 150/166.7/200/210 bar | 250/250/300/315 bar | 3.5 | 34CrMo4 | ISO 9809-1 |
| 7 | 600 | 9.6 | 150/166.7/200/210 bar | 250/250/300/315 bar | 3.5 | 34CrMo4 | ISO 9809-1 |
| 7.5 | 635 | 10 | 150/166.7/200/210 bar | 250/250/300/315 bar | 3.5 | 34CrMo4 | ISO 9809-1 |
| 8 | 670 | 10.5 | 150/166.7/200/210 bar | 250/250/300/315 bar | 3.5 | 34CrMo4 | ISO 9809-1 |
| 9 | 740 | 11.5 | 150/166.7/200/210 bar | 250/250/300/315 bar | 3.5 | 34CrMo4 | ISO 9809-1 |
| 10 | 810 | 12.5 | 150/166.7/200/210 bar | 250/250/300/315 bar | 3.5 | 34CrMo4 | ISO 9809-1 |
| 11 | 880 | 13.5 | 150/166.7/200/210 bar | 250/250/300/315 bar | 3.5 | 34CrMo4 | ISO 9809-1 |
| 12 | 950 | 14.5 | 150/166.7/200/210 bar | 250/250/300/315 bar | 3.5 | 34CrMo4 | ISO 9809-1 |
| 13 | 1020 | 15.5 | 150/166.7/200/210 bar | 250/250/300/315 bar | 3.5 | 34CrMo4 | ISO 9809-1 |
| 13.4 | 1050 | 15.9 | 150/166.7/200/210 bar | 250/250/300/315 bar | 3.5 | 34CrMo4 | ISO 9809-1 |
| 14 | 1090 | 16.5 | 150/166.7/200/210 bar | 250/250/300/315 bar | 3.5 | 34CrMo4 | ISO 9809-1 |
| 15 | 1160 | 17.5 | 150/166.7/200/210 bar | 250/250/300/315 bar | 3.5 | 34CrMo4 | ISO 9809-1 |
Ø152 mm series6–15 L · 14 configurations
| Capacity (L) | Height* (mm) | Weight* (kg) | Working pressure | Test pressure | Wall (mm) | Material | Standard |
|---|---|---|---|---|---|---|---|
| 8 | 585 | 10.3 | 15 MPa (150 bar) | 22.5 MPa (225 bar) | 3.6 | 37Mn | GB/T 5099.3-15MPa |
| 8.5 | 620 | 10.7 | 15 MPa (150 bar) | 22.5 MPa (225 bar) | 3.6 | 37Mn | GB/T 5099.3-15MPa |
| 10 | 705 | 12.1 | 15 MPa (150 bar) | 22.5 MPa (225 bar) | 3.6 | 37Mn | GB/T 5099.3-15MPa |
| 12 | 825 | 13.5 | 15 MPa (150 bar) | 22.5 MPa (225 bar) | 3.6 | 37Mn | GB/T 5099.3-15MPa |
| 15 | 1005 | 15.5 | 15 MPa (150 bar) | 22.5 MPa (225 bar) | 3.6 | 37Mn | GB/T 5099.3-15MPa |
| 6 | 470 | 9.6 | 150 bar | 250 bar | 4.0 | 37Mn | ISO 9809-3-150BAR |
| 7 | 524 | 10.6 | 150 bar | 250 bar | 4.0 | 37Mn | ISO 9809-3-150BAR |
| 8 | 586 | 11.6 | 150 bar | 250 bar | 4.0 | 37Mn | ISO 9809-3-150BAR |
| 9 | 648 | 12.6 | 150 bar | 250 bar | 4.0 | 37Mn | ISO 9809-3-150BAR |
| 10 | 710 | 13.6 | 150 bar | 250 bar | 4.0 | 37Mn | ISO 9809-3-150BAR |
| 12 | 834 | 15.6 | 150 bar | 250 bar | 4.0 | 37Mn | ISO 9809-3-150BAR |
| 13 | 896 | 16.6 | 150 bar | 250 bar | 4.0 | 37Mn | ISO 9809-3-150BAR |
| 14 | 958 | 17.6 | 150 bar | 250 bar | 4.0 | 37Mn | ISO 9809-3-150BAR |
| 15 | 1020 | 18.6 | 150 bar | 250 bar | 4.0 | 37Mn | ISO 9809-3-150BAR |
Ø159 mm series6–20 L · 27 configurations
| Capacity (L) | Height* (mm) | Weight* (kg) | Working pressure | Test pressure | Wall (mm) | Material | Standard |
|---|---|---|---|---|---|---|---|
| 8 | 545 | 10.0 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 3.6 | 37Mn | GB/T 5099.3-15MPa |
| 10 | 660 | 11.8 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 3.6 | 37Mn | GB/T 5099.3-15MPa |
| 12 | 775 | 14.6 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 3.6 | 37Mn | GB/T 5099.3-15MPa |
| 15 | 945 | 16.3 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 3.6 | 37Mn | GB/T 5099.3-15MPa |
| 18 | 1115 | 20.0 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 3.6 | 37Mn | GB/T 5099.3-15MPa |
| 8 | 550 | 12 | 150 bar | 250 bar | 4.2 | 37Mn | ISO 9809-3 |
| 10 | 665 | 14 | 150 bar | 250 bar | 4.2 | 37Mn | ISO 9809-3 |
| 12 | 780 | 16 | 150 bar | 250 bar | 4.2 | 37Mn | ISO 9809-3 |
| 15 | 950 | 19 | 150 bar | 250 bar | 4.2 | 37Mn | ISO 9809-3 |
| 18 | 1120 | 22 | 150 bar | 250 bar | 4.2 | 37Mn | ISO 9809-3 |
| 6 | 435 | 9.5 | 200/166.7/150 bar | 300/250/250 bar | 4.0 | 34CrMo4 | ISO 9809-1 |
| 6.7 | 475 | 10.2 | 200/166.7/150 bar | 300/250/250 bar | 4.0 | 34CrMo4 | ISO 9809-1 |
| 7 | 490 | 10.5 | 200/166.7/150 bar | 300/250/250 bar | 4.0 | 34CrMo4 | ISO 9809-1 |
| 7.5 | 515 | 11 | 200/166.7/150 bar | 300/250/250 bar | 4.0 | 34CrMo4 | ISO 9809-1 |
| 8 | 545 | 11.5 | 200/166.7/150 bar | 300/250/250 bar | 4.0 | 34CrMo4 | ISO 9809-1 |
| 9 | 600 | 12.5 | 200/166.7/150 bar | 300/250/250 bar | 4.0 | 34CrMo4 | ISO 9809-1 |
| 10 | 660 | 13.5 | 200/166.7/150 bar | 300/250/250 bar | 4.0 | 34CrMo4 | ISO 9809-1 |
| 11 | 715 | 14.5 | 200/166.7/150 bar | 300/250/250 bar | 4.0 | 34CrMo4 | ISO 9809-1 |
| 12 | 770 | 15.5 | 200/166.7/150 bar | 300/250/250 bar | 4.0 | 34CrMo4 | ISO 9809-1 |
| 13 | 825 | 16.5 | 200/166.7/150 bar | 300/250/250 bar | 4.0 | 34CrMo4 | ISO 9809-1 |
| 13.4 | 845 | 16.9 | 200/166.7/150 bar | 300/250/250 bar | 4.0 | 34CrMo4 | ISO 9809-1 |
| 14 | 880 | 17.5 | 200/166.7/150 bar | 300/250/250 bar | 4.0 | 34CrMo4 | ISO 9809-1 |
| 15 | 940 | 18.5 | 200/166.7/150 bar | 300/250/250 bar | 4.0 | 34CrMo4 | ISO 9809-1 |
| 16 | 995 | 19.5 | 200/166.7/150 bar | 300/250/250 bar | 4.0 | 34CrMo4 | ISO 9809-1 |
| 17 | 1050 | 20.5 | 200/166.7/150 bar | 300/250/250 bar | 4.0 | 34CrMo4 | ISO 9809-1 |
| 18 | 1105 | 21.5 | 200/166.7/150 bar | 300/250/250 bar | 4.0 | 34CrMo4 | ISO 9809-1 |
| 20 | 1215 | 23.5 | 200/166.7/150 bar | 300/250/250 bar | 4.0 | 34CrMo4 | ISO 9809-1 |
Ø180 mm series6–25 L · 33 configurations
| Capacity (L) | Height* (mm) | Weight* (kg) | Working pressure | Test pressure | Wall (mm) | Material | Standard |
|---|---|---|---|---|---|---|---|
| 6 | 380 | 11 | 150/166.7 bar | 250 bar | 4.7 | 37Mn | ISO 9809-3 |
| 7 | 425 | 12 | 150/166.7 bar | 250 bar | 4.7 | 37Mn | ISO 9809-3 |
| 8 | 470 | 13 | 150/166.7 bar | 250 bar | 4.7 | 37Mn | ISO 9809-3 |
| 9 | 515 | 14 | 150/166.7 bar | 250 bar | 4.7 | 37Mn | ISO 9809-3 |
| 10 | 560 | 15 | 150/166.7 bar | 250 bar | 4.7 | 37Mn | ISO 9809-3 |
| 13 | 695 | 18 | 150/166.7 bar | 250 bar | 4.7 | 37Mn | ISO 9809-3 |
| 13.4 | 715 | 18.3 | 150/166.7 bar | 250 bar | 4.7 | 37Mn | ISO 9809-3 |
| 15 | 785 | 20 | 150/166.7 bar | 250 bar | 4.7 | 37Mn | ISO 9809-3 |
| 18 | 920 | 23 | 150/166.7 bar | 250 bar | 4.7 | 37Mn | ISO 9809-3 |
| 20 | 1010 | 25 | 150/166.7 bar | 250 bar | 4.7 | 37Mn | ISO 9809-3 |
| 21 | 1055 | 26 | 150/166.7 bar | 250 bar | 4.7 | 37Mn | ISO 9809-3 |
| 21.6 | 1080 | 26.6 | 150/166.7 bar | 250 bar | 4.7 | 37Mn | ISO 9809-3 |
| 22 | 1100 | 27 | 150/166.7 bar | 250 bar | 4.7 | 37Mn | ISO 9809-3 |
| 22.3 | 1110 | 27.3 | 150/166.7 bar | 250 bar | 4.7 | 37Mn | ISO 9809-3 |
| 23 | 1145 | 28 | 150/166.7 bar | 250 bar | 4.7 | 37Mn | ISO 9809-3 |
| 24 | 1190 | 29 | 150/166.7 bar | 250 bar | 4.7 | 37Mn | ISO 9809-3 |
| 25 | 1235 | 30 | 150/166.7 bar | 250 bar | 4.7 | 37Mn | ISO 9809-3 |
| 6 | 375 | 11 | 200 bar | 300 bar | 4.2 | 34CrMo4 | ISO 9809-1 |
| 6.7 | 410 | 11.7 | 200 bar | 300 bar | 4.2 | 34CrMo4 | ISO 9809-1 |
| 7 | 420 | 12 | 200 bar | 300 bar | 4.2 | 34CrMo4 | ISO 9809-1 |
| 7.5 | 440 | 12.5 | 200 bar | 300 bar | 4.2 | 34CrMo4 | ISO 9809-1 |
| 7.8 | 455 | 12.8 | 200 bar | 300 bar | 4.2 | 34CrMo4 | ISO 9809-1 |
| 8 | 465 | 13 | 200 bar | 300 bar | 4.2 | 34CrMo4 | ISO 9809-1 |
| 9 | 510 | 14 | 200 bar | 300 bar | 4.2 | 34CrMo4 | ISO 9809-1 |
| 10 | 555 | 15 | 200 bar | 300 bar | 4.2 | 34CrMo4 | ISO 9809-1 |
| 10.8 | 590 | 15.8 | 200 bar | 300 bar | 4.2 | 34CrMo4 | ISO 9809-1 |
| 11 | 600 | 16 | 200 bar | 300 bar | 4.2 | 34CrMo4 | ISO 9809-1 |
| 13 | 690 | 18 | 200 bar | 300 bar | 4.2 | 34CrMo4 | ISO 9809-1 |
| 13.4 | 710 | 18.3 | 200 bar | 300 bar | 4.2 | 34CrMo4 | ISO 9809-1 |
| 15 | 780 | 20 | 200 bar | 300 bar | 4.2 | 34CrMo4 | ISO 9809-1 |
| 18 | 915 | 23 | 200 bar | 300 bar | 4.2 | 34CrMo4 | ISO 9809-1 |
| 20 | 1005 | 25 | 200 bar | 300 bar | 4.2 | 34CrMo4 | ISO 9809-1 |
| 25 | 1235 | 30 | 200 bar | 300 bar | 4.2 | 34CrMo4 | ISO 9809-1 |
Ø165 mm series6–20 L · 10 configurations
| Capacity (L) | Height* (mm) | Weight* (kg) | Working pressure | Test pressure | Wall (mm) | Material | Standard |
|---|---|---|---|---|---|---|---|

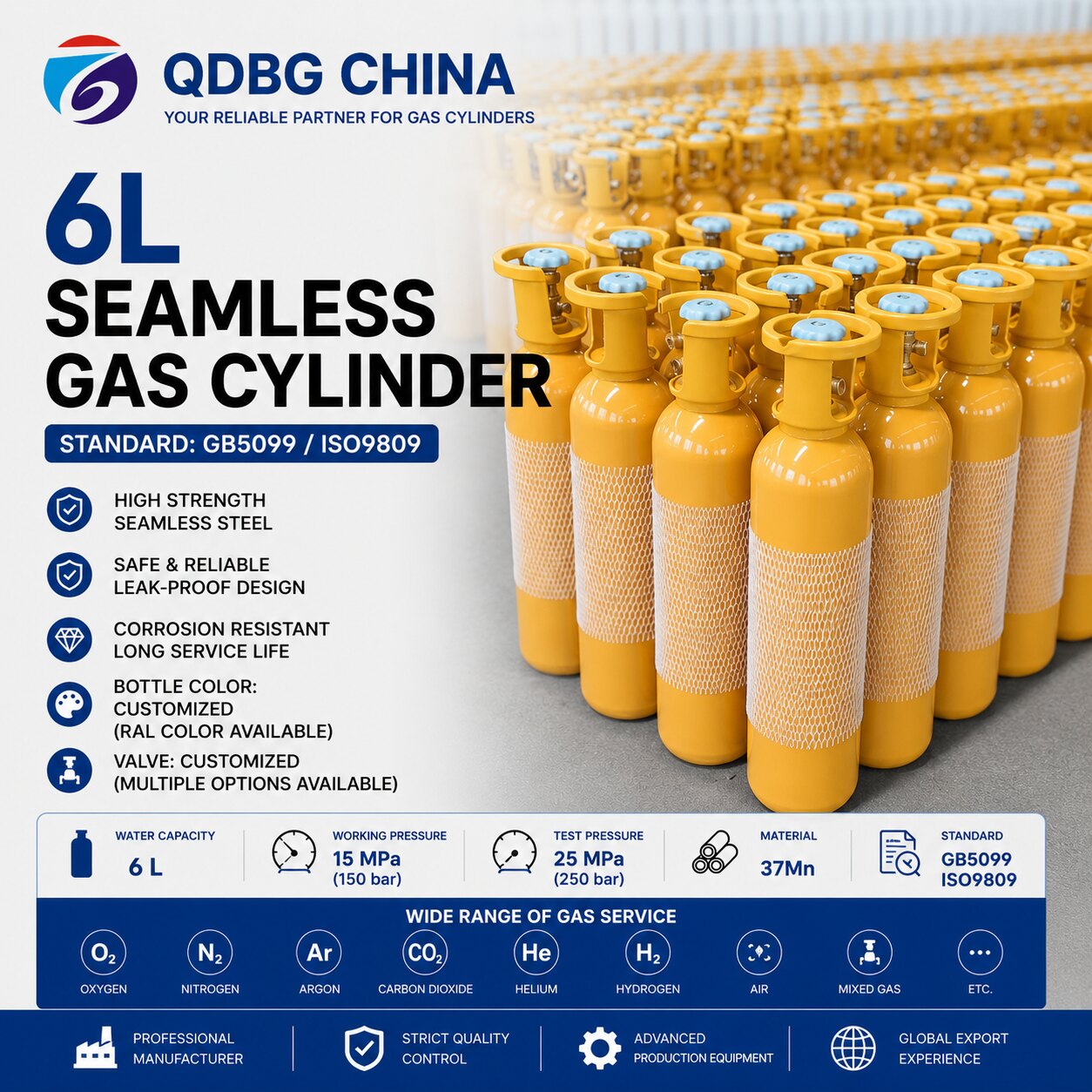

| 6 | 385 | 10.5 | 150/166.7 bar | 250 bar | 3.8 | 37Mn | ISO 9809-1 |
| 7 | 445 | 11.5 | 150/166.7 bar | 250 bar | 3.8 | 37Mn | ISO 9809-1 |

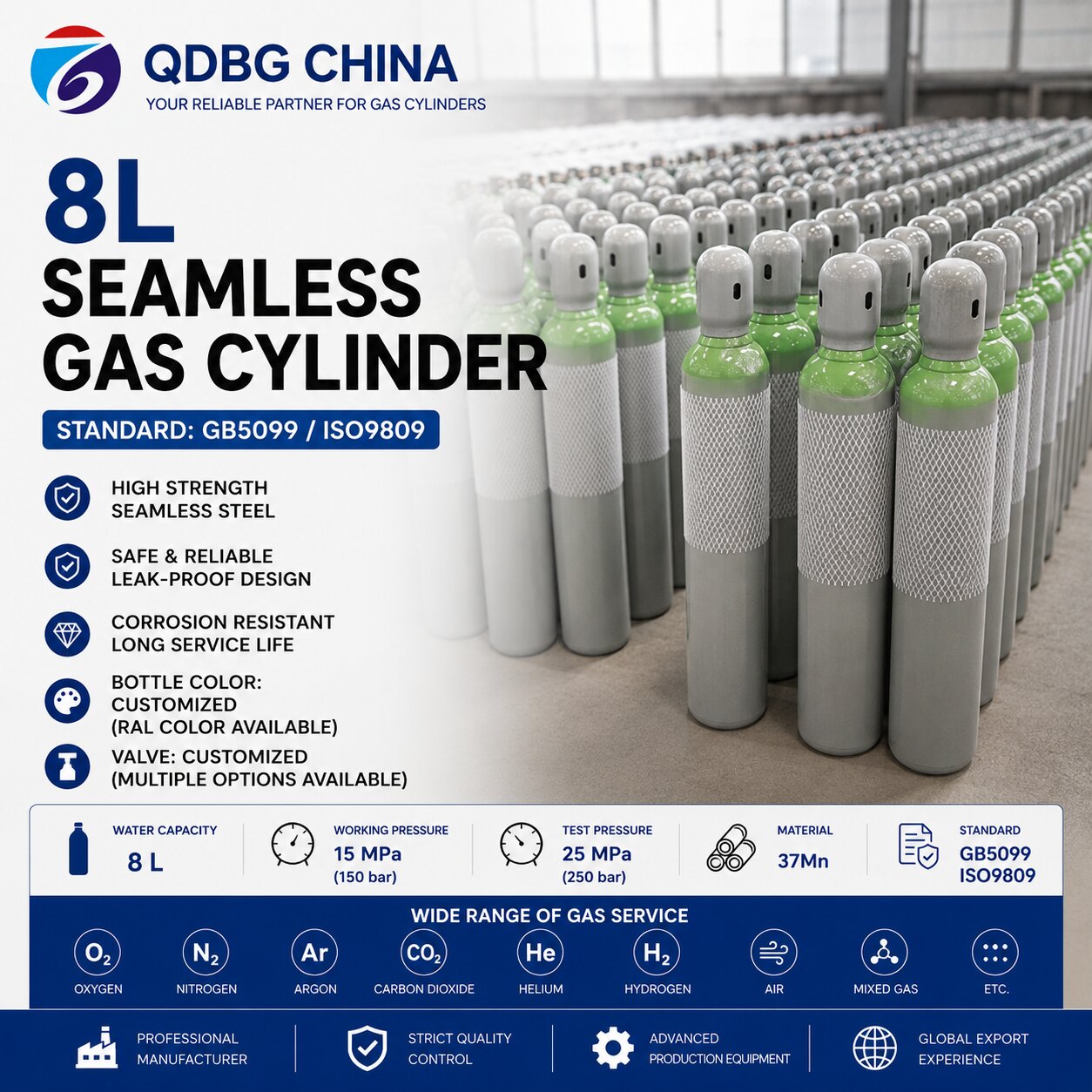

| 8 | 505 | 12.5 | 150/166.7 bar | 250 bar | 3.8 | 37Mn | ISO 9809-1 |

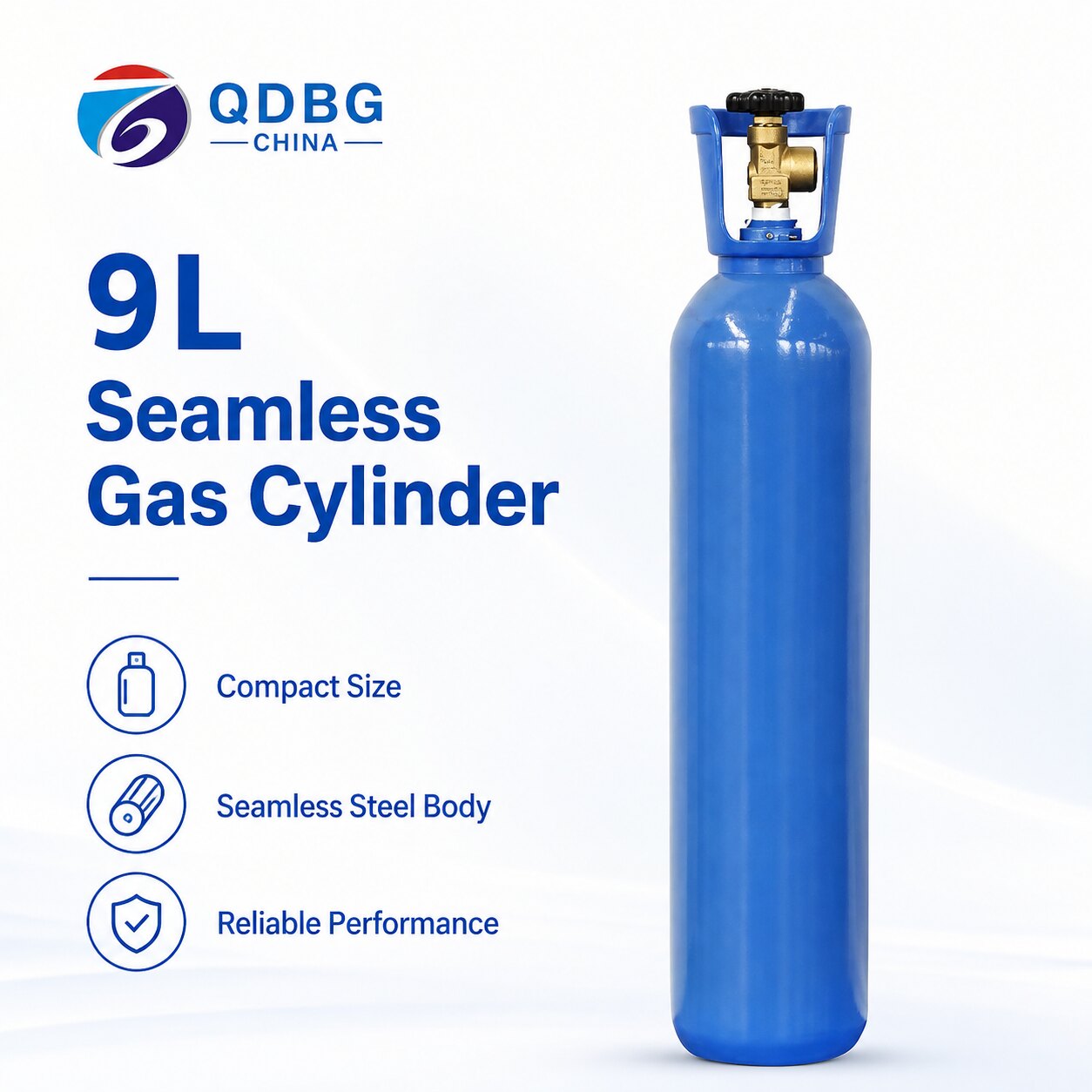

| 9 | 565 | 13.5 | 150/166.7 bar | 250 bar | 3.8 | 37Mn | ISO 9809-1 |

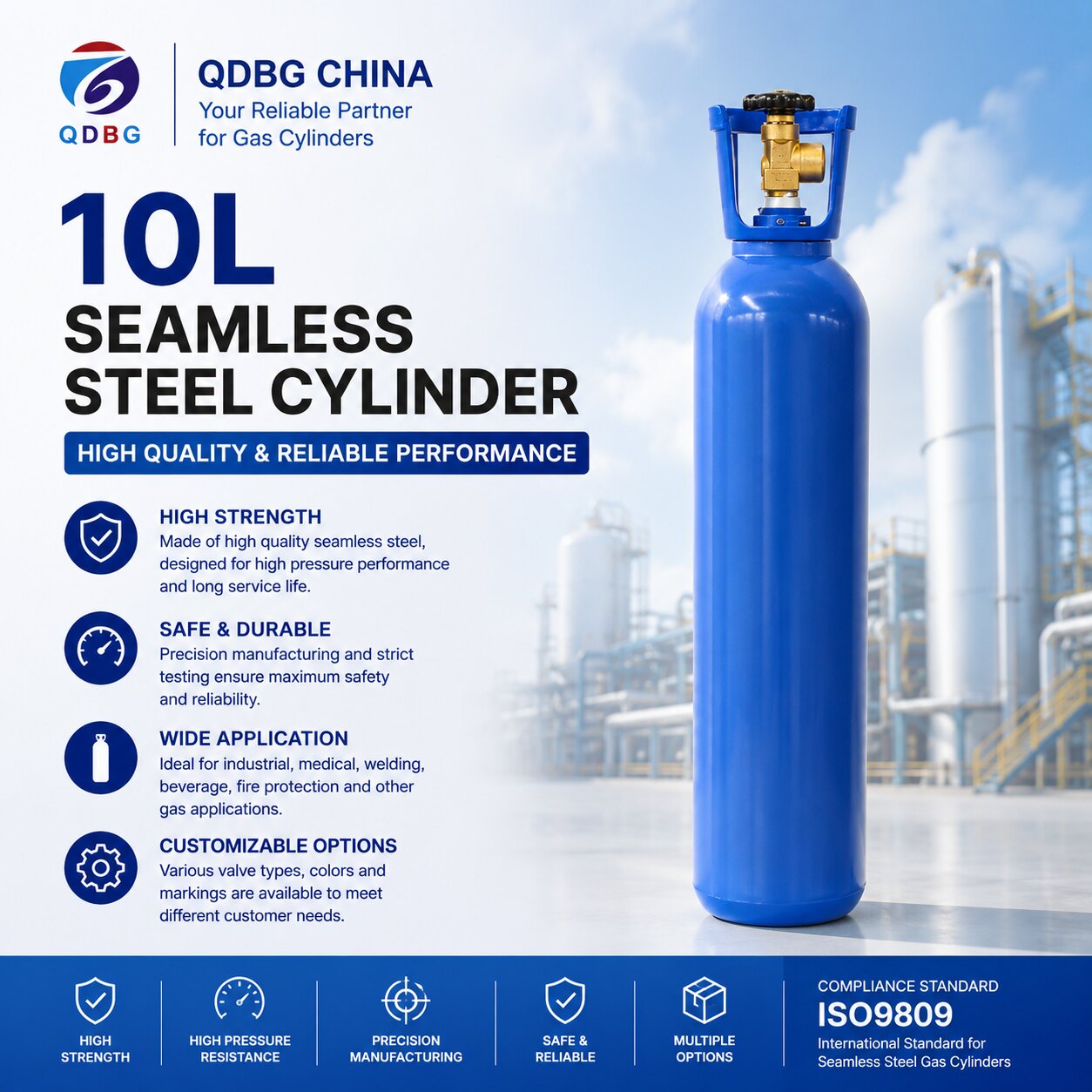

| 10 | 625 | 14.5 | 150/166.7 bar | 250 bar | 3.8 | 37Mn | ISO 9809-1 |
| 13 | 795 | 17.5 | 150/166.7 bar | 250 bar | 3.8 | 37Mn | ISO 9809-1 |
| 13.4 | 835 | 18 | 150/166.7 bar | 250 bar | 3.8 | 37Mn | ISO 9809-1 |

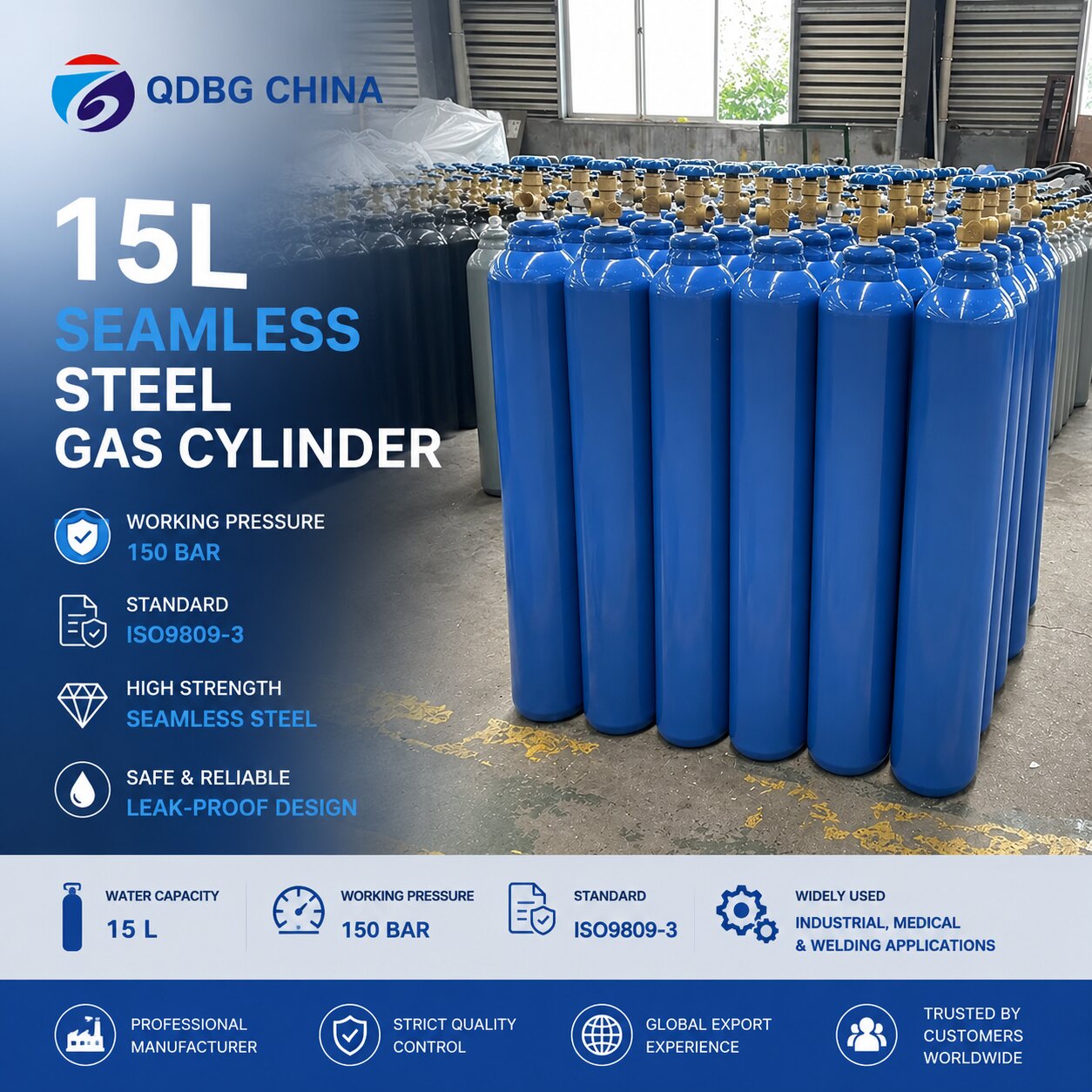

| 15 | 910 | 19.5 | 150/166.7 bar | 250 bar | 3.8 | 37Mn | ISO 9809-1 |
| 18 | 1080 | 22.5 | 150/166.7 bar | 250 bar | 3.8 | 37Mn | ISO 9809-1 |
| 20 | 1195 | 24.5 | 150/166.7 bar | 250 bar | 3.8 | 37Mn | ISO 9809-1 |
Ø116 mm series2–4.5 L · 5 configurations
| Capacity (L) | Height* (mm) | Weight* (kg) | Working pressure | Test pressure | Wall (mm) | Material | Standard |
|---|---|---|---|---|---|---|---|
| 2 | 295 | 3.5 | 17 MPa | 25.5 MPa | 2.4 | 34CrMo4 | GB/T 5099.1 |

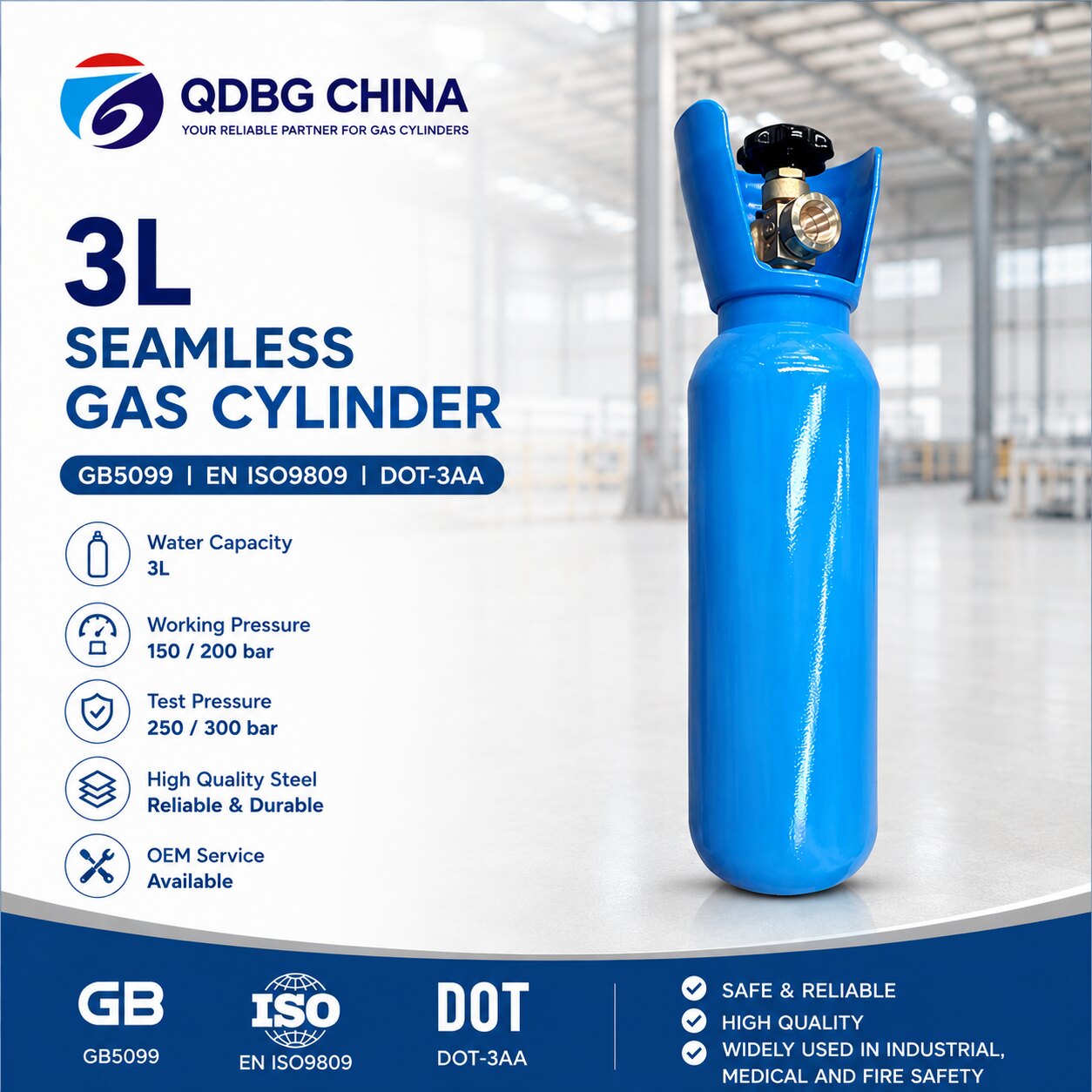

| 3 | 395 | 4.5 | 17 MPa | 25.5 MPa | 2.4 | 34CrMo4 | GB/T 5099.1 |
| 3.5 | 445 | 5 | 17 MPa | 25.5 MPa | 2.4 | 34CrMo4 | GB/T 5099.1 |
| 4 | 495 | 5.5 | 17 MPa | 25.5 MPa | 2.4 | 34CrMo4 | GB/T 5099.1 |
| 4.5 | 545 | 6 | 17 MPa | 25.5 MPa | 2.4 | 34CrMo4 | GB/T 5099.1 |
Ø136 mm series3–11 L · 13 configurations
| Capacity (L) | Height* (mm) | Weight* (kg) | Working pressure | Test pressure | Wall (mm) | Material | Standard |
|---|---|---|---|---|---|---|---|
| 3 | 315 | 4.7 | 17 MPa | 25.5 MPa | 2.8 | 34CrMo4 | GB/T 5099.1 |
| 3.5 | 355 | 5.1 | 17 MPa | 25.5 MPa | 2.8 | 34CrMo4 | GB/T 5099.1 |
| 4 | 390 | 5.6 | 17 MPa | 25.5 MPa | 2.8 | 34CrMo4 | GB/T 5099.1 |
| 4.5 | 430 | 6 | 17 MPa | 25.5 MPa | 2.8 | 34CrMo4 | GB/T 5099.1 |
| 5 | 465 | 6.5 | 17 MPa | 25.5 MPa | 2.8 | 34CrMo4 | GB/T 5099.1 |
| 6 | 540 | 7.4 | 17 MPa | 25.5 MPa | 2.8 | 34CrMo4 | GB/T 5099.1 |
| 7 | 615 | 8.3 | 17 MPa | 25.5 MPa | 2.8 | 34CrMo4 | GB/T 5099.1 |
| 7.5 | 650 | 8.5 | 17 MPa | 25.5 MPa | 2.8 | 34CrMo4 | GB/T 5099.1 |
| 8 | 690 | 9.2 | 17 MPa | 25.5 MPa | 2.8 | 34CrMo4 | GB/T 5099.1 |
| 9 | 765 | 10.1 | 17 MPa | 25.5 MPa | 2.8 | 34CrMo4 | GB/T 5099.1 |
| 10 | 840 | 11 | 17 MPa | 25.5 MPa | 2.8 | 34CrMo4 | GB/T 5099.1 |
| 10.5 | 880 | 11.5 | 17 MPa | 25.5 MPa | 2.8 | 34CrMo4 | GB/T 5099.1 |
| 11 | 915 | 12 | 17 MPa | 25.5 MPa | 2.8 | 34CrMo4 | GB/T 5099.1 |
Ø154 mm series5–15 L · 13 configurations
| Capacity (L) | Height* (mm) | Weight* (kg) | Working pressure | Test pressure | Wall (mm) | Material | Standard |
|---|---|---|---|---|---|---|---|
| 5 | 375 | 6.8 | 17 MPa | 25.5 MPa | 3.1 | 34CrMo4 | GB/T 5099.1 |
| 6 | 435 | 7.4 | 17 MPa | 25.5 MPa | 3.1 | 34CrMo4 | GB/T 5099.1 |
| 7 | 495 | 8.2 | 17 MPa | 25.5 MPa | 3.1 | 34CrMo4 | GB/T 5099.1 |
| 7.5 | 525 | 8.6 | 17 MPa | 25.5 MPa | 3.1 | 34CrMo4 | GB/T 5099.1 |
| 8 | 555 | 9 | 17 MPa | 25.5 MPa | 3.1 | 34CrMo4 | GB/T 5099.1 |
| 9 | 615 | 9.8 | 17 MPa | 25.5 MPa | 3.1 | 34CrMo4 | GB/T 5099.1 |
| 10 | 675 | 10.6 | 17 MPa | 25.5 MPa | 3.1 | 34CrMo4 | GB/T 5099.1 |
| 10.5 | 705 | 11 | 17 MPa | 25.5 MPa | 3.1 | 34CrMo4 | GB/T 5099.1 |
| 11 | 735 | 11.4 | 17 MPa | 25.5 MPa | 3.1 | 34CrMo4 | GB/T 5099.1 |

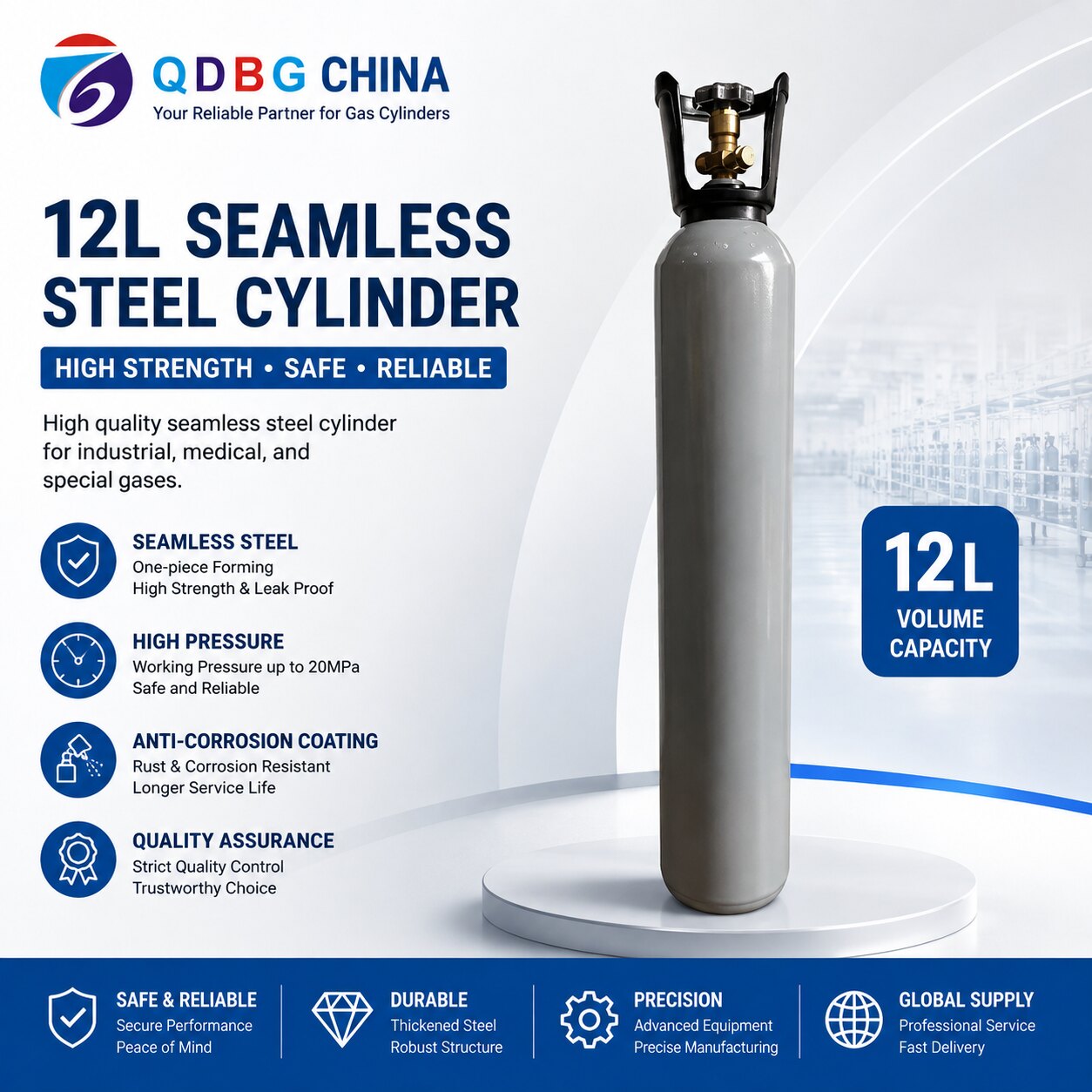

| 12 | 795 | 12.2 | 17 MPa | 25.5 MPa | 3.1 | 34CrMo4 | GB/T 5099.1 |
| 13 | 855 | 13 | 17 MPa | 25.5 MPa | 3.1 | 34CrMo4 | GB/T 5099.1 |
| 14 | 915 | 13.8 | 17 MPa | 25.5 MPa | 3.1 | 34CrMo4 | GB/T 5099.1 |
| 15 | 975 | 14.6 | 17 MPa | 25.5 MPa | 3.1 | 34CrMo4 | GB/T 5099.1 |
Ø203 mm series13.4–40 L · 14 configurations
| Capacity (L) | Height* (mm) | Weight* (kg) | Working pressure | Test pressure | Wall (mm) | Material | Standard |
|---|---|---|---|---|---|---|---|
| 13.4 | 575 | 20 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.4 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 15 | 630 | 21.7 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.4 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 18 | 735 | 24.7 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.4 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 20 | 805 | 26.7 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.4 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 23 | 910 | 29.7 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.4 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 23.6 | 930 | 30.2 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.4 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 25 | 980 | 31.7 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.4 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 26 | 1015 | 32.7 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.4 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 28 | 1085 | 34.7 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.4 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 30 | 1155 | 36.7 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.4 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 32 | 1225 | 38.7 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.4 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 35 | 1330 | 41.7 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.4 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 37 | 1400 | 43.7 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.4 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 40 | 1505 | 46.7 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.4 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
Ø219 mm series20–50 L · 39 configurations
| Capacity (L) | Height* (mm) | Weight* (kg) | Working pressure | Test pressure | Wall (mm) | Material | Standard |
|---|---|---|---|---|---|---|---|
| 20 | 700 | 25 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.0 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-1-150BAR |
| 23 | 800 | 27.5 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.0 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-1-150BAR |
| 25 | 870 | 29.2 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.0 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-1-150BAR |
| 28 | 950 | 31.3 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.0 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-1-150BAR |
| 30 | 1010 | 33.8 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.0 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-1-150BAR |
| 32 | 1070 | 35.6 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.0 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-1-150BAR |
| 34 | 1130 | 37.4 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.0 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-1-150BAR |
| 36 | 1190 | 39.2 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.0 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-1-150BAR |
| 38 | 1250 | 41.0 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.0 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-1-150BAR |
| 40 | 1310 | 42.8 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.0 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-1-150BAR |
| 42 | 1370 | 44.6 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.0 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-1-150BAR |
| 45 | 1455 | 47.3 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.0 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-1-150BAR |
| 47 | 1515 | 49.1 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.0 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-1-150BAR |
| 50 | 1605 | 51.8 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.0 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-1-150BAR |
| 20 | 715 | 28.3 | 150 bar | 250 bar | 5.3 | 37Mn | ISO 9809-3 |
| 25 | 865 | 33.4 | 150 bar | 250 bar | 5.3 | 37Mn | ISO 9809-3 |
| 32 | 1075 | 40.2 | 150 bar | 250 bar | 5.3 | 37Mn | ISO 9809-3 |
| 36 | 1195 | 44.5 | 150 bar | 250 bar | 5.3 | 37Mn | ISO 9809-3 |
| 37 | 1225 | 45.5 | 150 bar | 250 bar | 5.3 | 37Mn | ISO 9809-3 |
| 38 | 1255 | 46.6 | 150 bar | 250 bar | 5.3 | 37Mn | ISO 9809-3 |
| 40 | 1315 | 47.7 | 150 bar | 250 bar | 5.3 | 37Mn | ISO 9809-3 |
| 42 | 1375 | 49.7 | 150 bar | 250 bar | 5.3 | 37Mn | ISO 9809-3 |
| 45 | 1465 | 53.8 | 150 bar | 250 bar | 5.3 | 37Mn | ISO 9809-3 |
| 50 | 1615 | 58.5 | 150 bar | 250 bar | 5.3 | 37Mn | ISO 9809-3 |
| 20 | 725 | 28.2 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.7 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 23 | 805 | 31.0 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.7 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 25 | 875 | 33.0 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.7 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 28 | 955 | 35.9 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.7 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 30 | 1015 | 37.9 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.7 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 32 | 1075 | 39.9 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.7 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 34 | 1135 | 41.8 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.7 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 36 | 1195 | 43.8 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.7 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 37 | 1225 | 45.5 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.7 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 38 | 1255 | 46.2 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.7 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 40 | 1315 | 47.6 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.7 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 42 | 1370 | 49.6 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.7 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 45 | 1460 | 52.5 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.7 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 47 | 1520 | 54.0 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.7 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 50 | 1610 | 57.5 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 5.7 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
Ø229 mm series20–70 L · 83 configurations
| Capacity (L) | Height* (mm) | Weight* (kg) | Working pressure | Test pressure | Wall (mm) | Material | Standard |
|---|---|---|---|---|---|---|---|
| 40 | 1180 | 37 | 150/166.6 bar | 250 bar | 4.3 | 34CrMo4 | ISO 9809-1 |
| 42 | 1230 | 38.5 | 150/166.6 bar | 250 bar | 4.3 | 34CrMo4 | ISO 9809-1 |
| 45 | 1310 | 40.5 | 150/166.6 bar | 250 bar | 4.3 | 34CrMo4 | ISO 9809-1 |
| 47 | 1360 | 42 | 150/166.6 bar | 250 bar | 4.3 | 34CrMo4 | ISO 9809-1 |
| 50 | 1440 | 44 | 150/166.6 bar | 250 bar | 4.3 | 34CrMo4 | ISO 9809-1 |
| 52 | 1490 | 45.5 | 150/166.6 bar | 250 bar | 4.3 | 34CrMo4 | ISO 9809-1 |
| 20 | 670 | 26 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.7 | 37Mn | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 25 | 805 | 31 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.7 | 37Mn | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 30 | 940 | 36 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.7 | 37Mn | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 35 | 1075 | 41 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.7 | 37Mn | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 38 | 1155 | 44 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.7 | 37Mn | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 40 | 1210 | 46 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.7 | 37Mn | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 42 | 1265 | 48 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.7 | 37Mn | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 45 | 1345 | 51 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.7 | 37Mn | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 47 | 1400 | 53 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.7 | 37Mn | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 50 | 1480 | 56 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.7 | 37Mn | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 52 | 1535 | 58 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.7 | 37Mn | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 55 | 1615 | 61 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.7 | 37Mn | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 20 | 680 | 28.7 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.7 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 25 | 810 | 33.6 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.7 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 30 | 940 | 38.3 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.7 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 36 | 1100 | 43.9 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.7 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 38 | 1150 | 45.7 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.7 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 40 | 1215 | 47.6 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.7 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 42 | 1265 | 49.6 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.7 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 45 | 1350 | 52.3 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.7 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 47 | 1400 | 54.2 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.7 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 50 | 1480 | 56.7 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.7 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 52 | 1530 | 58.9 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.7 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 20 | 670 | 28 | 230/200/150 bar | 345/300/250 bar | 5.8 | 34CrMo4 | ISO 9809-1 |
| 25 | 805 | 32 | 230/200/150 bar | 345/300/250 bar | 5.8 | 34CrMo4 | ISO 9809-1 |
| 28 | 885 | 35 | 230/200/150 bar | 345/300/250 bar | 5.8 | 34CrMo4 | ISO 9809-1 |
| 30 | 940 | 37 | 230/200/150 bar | 345/300/250 bar | 5.8 | 34CrMo4 | ISO 9809-1 |
| 35 | 1075 | 42 | 230/200/150 bar | 345/300/250 bar | 5.8 | 34CrMo4 | ISO 9809-1 |
| 36 | 1100 | 43 | 230/200/150 bar | 345/300/250 bar | 5.8 | 34CrMo4 | ISO 9809-1 |
| 38 | 1155 | 45 | 230/200/150 bar | 345/300/250 bar | 5.8 | 34CrMo4 | ISO 9809-1 |
| 40 | 1210 | 47 | 230/200/150 bar | 345/300/250 bar | 5.8 | 34CrMo4 | ISO 9809-1 |
| 42 | 1265 | 49 | 230/200/150 bar | 345/300/250 bar | 5.8 | 34CrMo4 | ISO 9809-1 |
| 43.3 | 1295 | 50.3 | 230/200/150 bar | 345/300/250 bar | 5.8 | 34CrMo4 | ISO 9809-1 |
| 43.6 | 1300 | 50.6 | 230/200/150 bar | 345/300/250 bar | 5.8 | 34CrMo4 | ISO 9809-1 |
| 44 | 1315 | 51 | 230/200/150 bar | 345/300/250 bar | 5.8 | 34CrMo4 | ISO 9809-1 |
| 45 | 1345 | 52 | 230/200/150 bar | 345/300/250 bar | 5.8 | 34CrMo4 | ISO 9809-1 |
| 46 | 1370 | 53 | 230/200/150 bar | 345/300/250 bar | 5.8 | 34CrMo4 | ISO 9809-1 |
| 46.7 | 1385 | 53.5 | 230/200/150 bar | 345/300/250 bar | 5.8 | 34CrMo4 | ISO 9809-1 |
| 47 | 1400 | 54 | 230/200/150 bar | 345/300/250 bar | 5.8 | 34CrMo4 | ISO 9809-1 |
| 48 | 1425 | 55 | 230/200/150 bar | 345/300/250 bar | 5.8 | 34CrMo4 | ISO 9809-1 |
| 50 | 1480 | 57 | 230/200/150 bar | 345/300/250 bar | 5.8 | 34CrMo4 | ISO 9809-1 |
| 52 | 1535 | 59 | 230/200/150 bar | 345/300/250 bar | 5.8 | 34CrMo4 | ISO 9809-1 |
| 55 | 1615 | 62 | 230/200/150 bar | 345/300/250 bar | 5.8 | 34CrMo4 | ISO 9809-1 |
| 38 | 1200 | 49 | 60/150/166.7/200 bar | 90/250/250/300 bar | 6.2 | 30CrMo | ISO 9809-1 |
| 40 | 1250 | 52 | 60/150/166.7/200 bar | 90/250/250/300 bar | 6.2 | 30CrMo | ISO 9809-1 |
| 45 | 1380 | 57 | 60/150/166.7/200 bar | 90/250/250/300 bar | 6.2 | 30CrMo | ISO 9809-1 |
| 46 | 1405 | 58 | 60/150/166.7/200 bar | 90/250/250/300 bar | 6.2 | 30CrMo | ISO 9809-1 |
| 47 | 1430 | 59 | 60/150/166.7/200 bar | 90/250/250/300 bar | 6.2 | 30CrMo | ISO 9809-1 |
| 50 | 1505 | 62.5 | 60/150/166.7/200 bar | 90/250/250/300 bar | 6.2 | 30CrMo | ISO 9809-1 |
| 52 | 1555 | 64.5 | 60/150/166.7/200 bar | 90/250/250/300 bar | 6.2 | 30CrMo | ISO 9809-1 |
| 20 | 680 | 32 | 300/250 bar | 451/375 bar | 6.95 | 34CrMo4 | ISO 9809-1 |
| 25 | 820 | 38.5 | 300/250 bar | 451/375 bar | 6.95 | 34CrMo4 | ISO 9809-1 |
| 28 | 905 | 42.5 | 300/250 bar | 451/375 bar | 6.95 | 34CrMo4 | ISO 9809-1 |
| 30 | 960 | 45.1 | 300/250 bar | 451/375 bar | 6.95 | 34CrMo4 | ISO 9809-1 |
| 35 | 1100 | 51.7 | 300/250 bar | 451/375 bar | 6.95 | 34CrMo4 | ISO 9809-1 |
| 36 | 1130 | 53.1 | 300/250 bar | 451/375 bar | 6.95 | 34CrMo4 | ISO 9809-1 |
| 38 | 1185 | 55.7 | 300/250 bar | 451/375 bar | 6.95 | 34CrMo4 | ISO 9809-1 |
| 40 | 1240 | 58.3 | 300/250 bar | 451/375 bar | 6.95 | 34CrMo4 | ISO 9809-1 |
| 42 | 1295 | 60.8 | 300/250 bar | 451/375 bar | 6.95 | 34CrMo4 | ISO 9809-1 |
| 43.3 | 1330 | 62.5 | 300/250 bar | 451/375 bar | 6.95 | 34CrMo4 | ISO 9809-1 |
| 45 | 1380 | 64.8 | 300/250 bar | 451/375 bar | 6.95 | 34CrMo4 | ISO 9809-1 |
| 46 | 1410 | 66.2 | 300/250 bar | 451/375 bar | 6.95 | 34CrMo4 | ISO 9809-1 |
| 46.7 | 1430 | 67.2 | 300/250 bar | 451/375 bar | 6.95 | 34CrMo4 | ISO 9809-1 |
| 47 | 1435 | 67.4 | 300/250 bar | 451/375 bar | 6.95 | 34CrMo4 | ISO 9809-1 |
| 48 | 1465 | 68.8 | 300/250 bar | 451/375 bar | 6.95 | 34CrMo4 | ISO 9809-1 |
| 50 | 1520 | 71.5 | 300/250 bar | 451/375 bar | 6.95 | 34CrMo4 | ISO 9809-1 |
| 52 | 1575 | 74.0 | 300/250 bar | 451/375 bar | 6.95 | 34CrMo4 | ISO 9809-1 |
| 55 | 1660 | 78.0 | 300/250 bar | 451/375 bar | 6.95 | 34CrMo4 | ISO 9809-1 |
| 20 | 700 | 43.7 | 300/250/232/200 bar | 450/375/348/300 bar | 8.5 | 34CrMo4 | ISO 9809-1 |
| 40 | 1280 | 71.7 | 300/250/232/200 bar | 450/375/348/300 bar | 8.5 | 34CrMo4 | ISO 9809-1 |
| 45 | 1425 | 78.7 | 300/250/232/200 bar | 450/375/348/300 bar | 8.5 | 34CrMo4 | ISO 9809-1 |
| 46 | 1455 | 80.1 | 300/250/232/200 bar | 450/375/348/300 bar | 8.5 | 34CrMo4 | ISO 9809-1 |
| 47 | 1485 | 81.5 | 300/250/232/200 bar | 450/375/348/300 bar | 8.5 | 34CrMo4 | ISO 9809-1 |
| 50 | 1570 | 85.7 | 300/250/232/200 bar | 450/375/348/300 bar | 8.5 | 34CrMo4 | ISO 9809-1 |
| 52 | 1625 | 88.5 | 300/250/232/200 bar | 450/375/348/300 bar | 8.5 | 34CrMo4 | ISO 9809-1 |
| 60 | 1860 | 99.7 | 300/250/232/200 bar | 450/375/348/300 bar | 8.5 | 34CrMo4 | ISO 9809-1 |
| 70 | 2150 | 113.7 | 300/250/232/200 bar | 450/375/348/300 bar | 8.5 | 34CrMo4 | ISO 9809-1 |
Ø232 mm series27–52 L · 46 configurations
| Capacity (L) | Height* (mm) | Weight* (kg) | Working pressure | Test pressure | Wall (mm) | Material | Standard |
|---|---|---|---|---|---|---|---|
| 38 | 1125 | 42.3 | 200 bar | 300 bar | 5.2 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 40 | 1175 | 44.1 | 200 bar | 300 bar | 5.2 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 43.3 | 1265 | 47.2 | 200 bar | 300 bar | 5.2 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 45 | 1305 | 48.5 | 200 bar | 300 bar | 5.2 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 46 | 1330 | 49.4 | 200 bar | 300 bar | 5.2 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 46.7 | 1345 | 49.9 | 200 bar | 300 bar | 5.2 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 47 | 1355 | 50.1 | 200 bar | 300 bar | 5.2 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 50 | 1435 | 53 | 200 bar | 300 bar | 5.2 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 52 | 1485 | 54.8 | 200 bar | 300 bar | 5.2 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 27 | 850 | 33.2 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.4 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 38 | 1125 | 42.4 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.4 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 40 | 1175 | 44.1 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.4 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 43 | 1250 | 46.3 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.4 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 45 | 1315 | 48.4 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.4 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 46 | 1340 | 49.2 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.4 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 47 | 1365 | 50.0 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.4 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 50 | 1440 | 52.5 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.4 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 52 | 1490 | 54.1 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.4 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 38 | 1135 | 45.1 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.8 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 40 | 1185 | 46.9 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.8 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 45 | 1320 | 51.6 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.8 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 46 | 1350 | 52.6 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.8 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 47 | 1375 | 53.5 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.8 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 50 | 1460 | 56.5 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.8 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 52 | 1505 | 58.4 | 20 MPa (200 bar) | 30 MPa (300 bar) | 5.8 | 34CrMo4 | GB/T 5099.1-20MPa / ISO 9809-1-200BAR |
| 38 | 1135 | 45.1 | 230 bar | 345 bar | 5.8 | 34CrMo4 | ISO 9809-1 |
| 40 | 1185 | 46.9 | 230 bar | 345 bar | 5.8 | 34CrMo4 | ISO 9809-1 |
| 45 | 1320 | 51.6 | 230 bar | 345 bar | 5.8 | 34CrMo4 | ISO 9809-1 |
| 46 | 1350 | 52.6 | 230 bar | 345 bar | 5.8 | 34CrMo4 | ISO 9809-1 |
| 47 | 1375 | 53.5 | 230 bar | 345 bar | 5.8 | 34CrMo4 | ISO 9809-1 |
| 50 | 1460 | 56.5 | 230 bar | 345 bar | 5.8 | 34CrMo4 | ISO 9809-1 |
| 52 | 1505 | 58.4 | 230 bar | 345 bar | 5.8 | 34CrMo4 | ISO 9809-1 |
| 38 | 1135 | 42.4 | 15 MPa / 150-166.7 bar | 22.5 MPa (250 bar) | 5.4 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-1-150BAR |
| 40 | 1185 | 44.1 | 15 MPa / 150-166.7 bar | 22.5 MPa (250 bar) | 5.4 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-1-150BAR |
| 45 | 1315 | 48.4 | 15 MPa / 150-166.7 bar | 22.5 MPa (250 bar) | 5.4 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-1-150BAR |
| 46 | 1340 | 49.2 | 15 MPa / 150-166.7 bar | 22.5 MPa (250 bar) | 5.4 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-1-150BAR |
| 47 | 1365 | 50.0 | 15 MPa / 150-166.7 bar | 22.5 MPa (250 bar) | 5.4 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-1-150BAR |
| 50 | 1440 | 52.5 | 15 MPa / 150-166.7 bar | 22.5 MPa (250 bar) | 5.4 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-1-150BAR |
| 52 | 1490 | 54.1 | 15 MPa / 150-166.7 bar | 22.5 MPa (250 bar) | 5.4 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-1-150BAR |
| 38 | 1145 | 48 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 6.0 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 40 | 1195 | 49.8 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 6.0 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 45 | 1325 | 55.5 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 6.0 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 46 | 1350 | 56.6 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 6.0 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 47 | 1375 | 57.5 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 6.0 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 50 | 1460 | 59.9 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 6.0 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
| 52 | 1515 | 61.5 | 15 MPa (150 bar) | 22.5 MPa (250 bar) | 6.0 | 37Mn | GB/T 5099.3-15MPa / ISO 9809-3-150BAR |
Ø267 mm series50–90 L · 32 configurations
| Capacity (L) | Height* (mm) | Weight* (kg) | Working pressure | Test pressure | Wall (mm) | Material | Standard |
|---|---|---|---|---|---|---|---|
| 50 | 1105 | 51.5 | 15 MPa | 22.5 MPa | 5.7 | 37Mn | GB/T 5099.1 |
| 58 | 1265 | 58 | 15 MPa | 22.5 MPa | 5.7 | 37Mn | GB/T 5099.1 |
| 60 | 1305 | 59.5 | 15 MPa | 22.5 MPa | 5.7 | 37Mn | GB/T 5099.1 |
| 65 | 1405 | 63.5 | 15 MPa | 22.5 MPa | 5.7 | 37Mn | GB/T 5099.1 |
| 68 | 1465 | 66 | 15 MPa | 22.5 MPa | 5.7 | 37Mn | GB/T 5099.1 |
| 70 | 1505 | 67.5 | 15 MPa | 22.5 MPa | 5.7 | 37Mn | GB/T 5099.1 |
| 75 | 1605 | 71.5 | 15 MPa | 22.5 MPa | 5.7 | 37Mn | GB/T 5099.1 |
| 78 | 1665 | 74 | 15 MPa | 22.5 MPa | 5.7 | 37Mn | GB/T 5099.1 |
| 80 | 1705 | 75.5 | 15 MPa | 22.5 MPa | 5.7 | 37Mn | GB/T 5099.1 |
| 82 | 1745 | 77 | 15 MPa | 22.5 MPa | 5.7 | 37Mn | GB/T 5099.1 |
| 50 | 1115 | 52.8 | 150/166.7 bar | 250 bar | 5.9 | 37Mn | ISO 9809-1 |
| 58 | 1275 | 60.0 | 150/166.7 bar | 250 bar | 5.9 | 37Mn | ISO 9809-1 |
| 60 | 1315 | 61.8 | 150/166.7 bar | 250 bar | 5.9 | 37Mn | ISO 9809-1 |
| 65 | 1415 | 66.3 | 150/166.7 bar | 250 bar | 5.9 | 37Mn | ISO 9809-1 |
| 68 | 1475 | 69.2 | 150/166.7 bar | 250 bar | 5.9 | 37Mn | ISO 9809-1 |
| 70 | 1515 | 70.5 | 150/166.7 bar | 250 bar | 5.9 | 37Mn | ISO 9809-1 |
| 75 | 1615 | 74.5 | 150/166.7 bar | 250 bar | 5.9 | 37Mn | ISO 9809-1 |
| 78 | 1675 | 76.4 | 150/166.7 bar | 250 bar | 5.9 | 37Mn | ISO 9809-1 |
| 80 | 1715 | 78.5 | 150/166.7 bar | 250 bar | 5.9 | 37Mn | ISO 9809-1 |
| 82 | 1755 | 80.3 | 150/166.7 bar | 250 bar | 5.9 | 37Mn | ISO 9809-1 |
| 85 | 1815 | 82.2 | 150/166.7 bar | 250 bar | 5.9 | 37Mn | ISO 9809-1 |
| 90 | 1915 | 86.0 | 150/166.7 bar | 250 bar | 5.9 | 37Mn | ISO 9809-1 |
| 50 | 1120 | 56.3 | 200/150 bar | 300/250 bar | 6.2 | 34CrMo4 | ISO 9809-1 |
| 58 | 1280 | 63.3 | 200/150 bar | 300/250 bar | 6.2 | 34CrMo4 | ISO 9809-1 |
| 60 | 1320 | 65.0 | 200/150 bar | 300/250 bar | 6.2 | 34CrMo4 | ISO 9809-1 |
| 65 | 1420 | 69.4 | 200/150 bar | 300/250 bar | 6.2 | 34CrMo4 | ISO 9809-1 |
| 68 | 1480 | 72.0 | 200/150 bar | 300/250 bar | 6.2 | 34CrMo4 | ISO 9809-1 |
| 70 | 1520 | 73.7 | 200/150 bar | 300/250 bar | 6.2 | 34CrMo4 | ISO 9809-1 |
| 75 | 1620 | 78.2 | 200/150 bar | 300/250 bar | 6.2 | 34CrMo4 | ISO 9809-1 |
| 78 | 1680 | 80.8 | 200/150 bar | 300/250 bar | 6.2 | 34CrMo4 | ISO 9809-1 |
| 80 | 1720 | 83.0 | 200/150 bar | 300/250 bar | 6.2 | 34CrMo4 | ISO 9809-1 |
| 82 | 1760 | 84.2 | 200/150 bar | 300/250 bar | 6.2 | 34CrMo4 | ISO 9809-1 |
Ø279 mm series58–90 L · 22 configurations
| Capacity (L) | Height* (mm) | Weight* (kg) | Working pressure | Test pressure | Wall (mm) | Material | Standard |
|---|---|---|---|---|---|---|---|
| 58 | 1195 | 64.6 | 200 bar | 300 bar | 6.0 | 34CrMo4 | ISO 9809-1 |
| 60 | 1230 | 66.2 | 200 bar | 300 bar | 6.0 | 34CrMo4 | ISO 9809-1 |
| 67.5 | 1365 | 73.8 | 200 bar | 300 bar | 6.0 | 34CrMo4 | ISO 9809-1 |
| 68 | 1375 | 74.4 | 200 bar | 300 bar | 6.0 | 34CrMo4 | ISO 9809-1 |
| 70 | 1410 | 78.2 | 200 bar | 300 bar | 6.0 | 34CrMo4 | ISO 9809-1 |
| 80 | 1590 | 86.5 | 200 bar | 300 bar | 6.0 | 34CrMo4 | ISO 9809-1 |
| 82 | 1625 | 87.9 | 200 bar | 300 bar | 6.0 | 34CrMo4 | ISO 9809-1 |
| 82.5 | 1635 | 88.5 | 200 bar | 300 bar | 6.0 | 34CrMo4 | ISO 9809-1 |
| 84 | 1660 | 89.8 | 200 bar | 300 bar | 6.0 | 34CrMo4 | ISO 9809-1 |
| 87 | 1715 | 92.8 | 200 bar | 300 bar | 6.0 | 34CrMo4 | ISO 9809-1 |
| 90 | 1770 | 95.8 | 200 bar | 300 bar | 6.0 | 34CrMo4 | ISO 9809-1 |
| 58 | 1195 | 64.6 | 17.2 MPa | 25.8 MPa | 6.2 | 34CrMo4 | GB/T 5099.1 |
| 60 | 1230 | 66.2 | 17.2 MPa | 25.8 MPa | 6.2 | 34CrMo4 | GB/T 5099.1 |
| 67.5 | 1365 | 73.8 | 17.2 MPa | 25.8 MPa | 6.2 | 34CrMo4 | GB/T 5099.1 |
| 68 | 1375 | 74.4 | 17.2 MPa | 25.8 MPa | 6.2 | 34CrMo4 | GB/T 5099.1 |
| 70 | 1410 | 78.2 | 17.2 MPa | 25.8 MPa | 6.2 | 34CrMo4 | GB/T 5099.1 |
| 80 | 1590 | 86.5 | 17.2 MPa | 25.8 MPa | 6.2 | 34CrMo4 | GB/T 5099.1 |
| 82 | 1625 | 87.9 | 17.2 MPa | 25.8 MPa | 6.2 | 34CrMo4 | GB/T 5099.1 |
| 82.5 | 1635 | 88.5 | 17.2 MPa | 25.8 MPa | 6.2 | 34CrMo4 | GB/T 5099.1 |
| 84 | 1660 | 89.8 | 17.2 MPa | 25.8 MPa | 6.2 | 34CrMo4 | GB/T 5099.1 |
| 87 | 1715 | 92.8 | 17.2 MPa | 25.8 MPa | 6.2 | 34CrMo4 | GB/T 5099.1 |
| 90 | 1770 | 95.8 | 17.2 MPa | 25.8 MPa | 6.2 | 34CrMo4 | GB/T 5099.1 |
Ø356 mm · Convex bottom50–150 L · 63 configurations
| Capacity (L) | Height* (mm) | Weight* (kg) | Working pressure | Test pressure | Wall (mm) | Material | Standard |
|---|---|---|---|---|---|---|---|

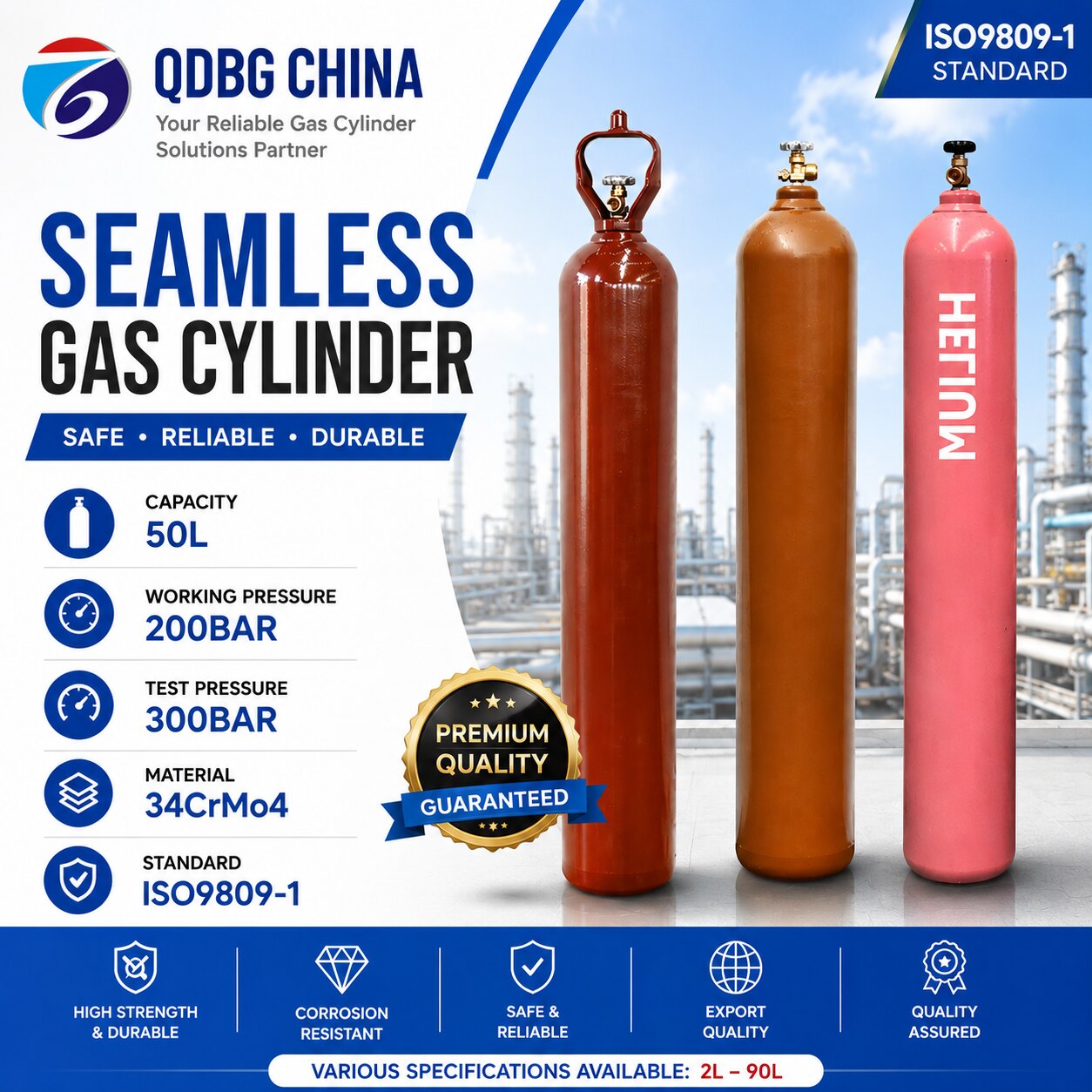

| 50 | 710 | 56 | 200 bar | 300 bar | 7.5 | 34CrMo4 | ISO 9809-1 |
| 55 | 765 | 60 | 200 bar | 300 bar | 7.5 | 34CrMo4 | ISO 9809-1 |
| 60 | 820 | 64 | 200 bar | 300 bar | 7.5 | 34CrMo4 | ISO 9809-1 |
| 65 | 875 | 68 | 200 bar | 300 bar | 7.5 | 34CrMo4 | ISO 9809-1 |
| 70 | 930 | 72 | 200 bar | 300 bar | 7.5 | 34CrMo4 | ISO 9809-1 |
| 75 | 985 | 76 | 200 bar | 300 bar | 7.5 | 34CrMo4 | ISO 9809-1 |
| 80 | 1040 | 80 | 200 bar | 300 bar | 7.5 | 34CrMo4 | ISO 9809-1 |
| 85 | 1095 | 84 | 200 bar | 300 bar | 7.5 | 34CrMo4 | ISO 9809-1 |
| 90 | 1150 | 88 | 200 bar | 300 bar | 7.5 | 34CrMo4 | ISO 9809-1 |
| 95 | 1205 | 92 | 200 bar | 300 bar | 7.5 | 34CrMo4 | ISO 9809-1 |
| 100 | 1260 | 96 | 200 bar | 300 bar | 7.5 | 34CrMo4 | ISO 9809-1 |
| 105 | 1315 | 100 | 200 bar | 300 bar | 7.5 | 34CrMo4 | ISO 9809-1 |
| 110 | 1370 | 104 | 200 bar | 300 bar | 7.5 | 34CrMo4 | ISO 9809-1 |
| 115 | 1425 | 108 | 200 bar | 300 bar | 7.5 | 34CrMo4 | ISO 9809-1 |
| 120 | 1480 | 112 | 200 bar | 300 bar | 7.5 | 34CrMo4 | ISO 9809-1 |
| 125 | 1535 | 116 | 200 bar | 300 bar | 7.5 | 34CrMo4 | ISO 9809-1 |
| 130 | 1590 | 120 | 200 bar | 300 bar | 7.5 | 34CrMo4 | ISO 9809-1 |
| 135 | 1645 | 124 | 200 bar | 300 bar | 7.5 | 34CrMo4 | ISO 9809-1 |
| 140 | 1700 | 128 | 200 bar | 300 bar | 7.5 | 34CrMo4 | ISO 9809-1 |
| 145 | 1755 | 132 | 200 bar | 300 bar | 7.5 | 34CrMo4 | ISO 9809-1 |
| 150 | 1810 | 136 | 200 bar | 300 bar | 7.5 | 34CrMo4 | ISO 9809-1 |
| 50 | 715 | 52 | 200 bar | 300 bar | 7.2 | 34CrMo4 | ISO 9809-1 |
| 55 | 770 | 56 | 200 bar | 300 bar | 7.2 | 34CrMo4 | ISO 9809-1 |
| 60 | 825 | 60 | 200 bar | 300 bar | 7.2 | 34CrMo4 | ISO 9809-1 |
| 65 | 880 | 64 | 200 bar | 300 bar | 7.2 | 34CrMo4 | ISO 9809-1 |
| 70 | 935 | 68 | 200 bar | 300 bar | 7.2 | 34CrMo4 | ISO 9809-1 |
| 75 | 990 | 72 | 200 bar | 300 bar | 7.2 | 34CrMo4 | ISO 9809-1 |
| 80 | 1045 | 76 | 200 bar | 300 bar | 7.2 | 34CrMo4 | ISO 9809-1 |
| 85 | 1100 | 80 | 200 bar | 300 bar | 7.2 | 34CrMo4 | ISO 9809-1 |
| 90 | 1155 | 84 | 200 bar | 300 bar | 7.2 | 34CrMo4 | ISO 9809-1 |
| 95 | 1210 | 88 | 200 bar | 300 bar | 7.2 | 34CrMo4 | ISO 9809-1 |
| 100 | 1265 | 92 | 200 bar | 300 bar | 7.2 | 34CrMo4 | ISO 9809-1 |
| 105 | 1320 | 96 | 200 bar | 300 bar | 7.2 | 34CrMo4 | ISO 9809-1 |
| 110 | 1375 | 100 | 200 bar | 300 bar | 7.2 | 34CrMo4 | ISO 9809-1 |
| 115 | 1430 | 104 | 200 bar | 300 bar | 7.2 | 34CrMo4 | ISO 9809-1 |
| 120 | 1485 | 108 | 200 bar | 300 bar | 7.2 | 34CrMo4 | ISO 9809-1 |
| 125 | 1535 | 112 | 200 bar | 300 bar | 7.2 | 34CrMo4 | ISO 9809-1 |
| 130 | 1595 | 116 | 200 bar | 300 bar | 7.2 | 34CrMo4 | ISO 9809-1 |
| 135 | 1650 | 120 | 200 bar | 300 bar | 7.2 | 34CrMo4 | ISO 9809-1 |
| 140 | 1705 | 124 | 200 bar | 300 bar | 7.2 | 34CrMo4 | ISO 9809-1 |
| 145 | 1760 | 128 | 200 bar | 300 bar | 7.2 | 34CrMo4 | ISO 9809-1 |
| 150 | 1815 | 132 | 200 bar | 300 bar | 7.2 | 34CrMo4 | ISO 9809-1 |
| 50 | 770 | 63 | 250 bar | 375 bar | 8.8 | 34CrMo4 | ISO 9809-1 |
| 55 | 825 | 68 | 250 bar | 375 bar | 8.8 | 34CrMo4 | ISO 9809-1 |
| 60 | 880 | 73 | 250 bar | 375 bar | 8.8 | 34CrMo4 | ISO 9809-1 |
| 65 | 935 | 78 | 250 bar | 375 bar | 8.8 | 34CrMo4 | ISO 9809-1 |
| 70 | 990 | 83 | 250 bar | 375 bar | 8.8 | 34CrMo4 | ISO 9809-1 |
| 75 | 1045 | 88 | 250 bar | 375 bar | 8.8 | 34CrMo4 | ISO 9809-1 |
| 80 | 1100 | 93 | 250 bar | 375 bar | 8.8 | 34CrMo4 | ISO 9809-1 |
| 85 | 1155 | 98 | 250 bar | 375 bar | 8.8 | 34CrMo4 | ISO 9809-1 |
| 90 | 1210 | 103 | 250 bar | 375 bar | 8.8 | 34CrMo4 | ISO 9809-1 |
| 95 | 1265 | 108 | 250 bar | 375 bar | 8.8 | 34CrMo4 | ISO 9809-1 |
| 100 | 1320 | 113 | 250 bar | 375 bar | 8.8 | 34CrMo4 | ISO 9809-1 |
| 105 | 1375 | 118 | 250 bar | 375 bar | 8.8 | 34CrMo4 | ISO 9809-1 |
| 110 | 1430 | 123 | 250 bar | 375 bar | 8.8 | 34CrMo4 | ISO 9809-1 |
| 115 | 1485 | 128 | 250 bar | 375 bar | 8.8 | 34CrMo4 | ISO 9809-1 |
| 120 | 1540 | 133 | 250 bar | 375 bar | 8.8 | 34CrMo4 | ISO 9809-1 |
| 125 | 1595 | 138 | 250 bar | 375 bar | 8.8 | 34CrMo4 | ISO 9809-1 |
| 130 | 1650 | 143 | 250 bar | 375 bar | 8.8 | 34CrMo4 | ISO 9809-1 |
| 135 | 1705 | 148 | 250 bar | 375 bar | 8.8 | 34CrMo4 | ISO 9809-1 |
| 140 | 1760 | 153 | 250 bar | 375 bar | 8.8 | 34CrMo4 | ISO 9809-1 |
| 145 | 1815 | 158 | 250 bar | 375 bar | 8.8 | 34CrMo4 | ISO 9809-1 |
| 150 | 1870 | 163 | 250 bar | 375 bar | 8.8 | 34CrMo4 | ISO 9809-1 |
International-standard cylinder series
IS 7285 · DOT UN ISO · DOT-3AAIndian Standard · IS1082–5 L · 8 models
| OD (mm) | Capacity (L) | Height* (mm) | Weight* (kg) | WP | TP | Wall (mm) | Material | Standard |
|---|---|---|---|---|---|---|---|---|
| 108 | 2 | 340 | 4.3 | 150 bar | 250 bar | 3.2 | 37Mn | IS 7285-1 |
| 108 | 2.5 | 400 | 4.9 | 150 bar | 250 bar | 3.2 | 37Mn | IS 7285-1 |
| 108 | 3 | 460 | 5.5 | 150 bar | 250 bar | 3.2 | 37Mn | IS 7285-1 |
| 108 | 3.4 | 510 | 6.1 | 150 bar | 250 bar | 3.2 | 37Mn | IS 7285-1 |
| 108 | 3.5 | 520 | 6.3 | 150 bar | 250 bar | 3.2 | 37Mn | IS 7285-1 |
| 108 | 4 | 580 | 6.8 | 150 bar | 250 bar | 3.2 | 37Mn | IS 7285-1 |
| 108 | 4.5 | 650 | 7.5 | 150 bar | 250 bar | 3.2 | 37Mn | IS 7285-1 |
| 108 | 5 | 710 | 8.1 | 150 bar | 250 bar | 3.2 | 37Mn | IS 7285-1 |
Indian Standard · IS1403–10 L · 8 models
| OD (mm) | Capacity (L) | Height* (mm) | Weight* (kg) | WP | TP | Wall (mm) | Material | Standard |
|---|---|---|---|---|---|---|---|---|
| 140 | 3 | 320 | 6.1 | 150 bar | 250 bar | 3.6 | 37Mn | IS 7285-1 |
| 140 | 4 | 390 | 7.1 | 150 bar | 250 bar | 3.6 | 37Mn | IS 7285-1 |
| 140 | 5 | 460 | 8.2 | 150 bar | 250 bar | 3.6 | 37Mn | IS 7285-1 |
| 140 | 6 | 530 | 9.3 | 150 bar | 250 bar | 3.6 | 37Mn | IS 7285-1 |
| 140 | 7 | 600 | 10.4 | 150 bar | 250 bar | 3.6 | 37Mn | IS 7285-1 |
| 140 | 8 | 670 | 11.5 | 150 bar | 250 bar | 3.6 | 37Mn | IS 7285-1 |
| 140 | 9 | 740 | 12.5 | 150 bar | 250 bar | 3.6 | 37Mn | IS 7285-1 |
| 140 | 10 | 810 | 13.6 | 150 bar | 250 bar | 3.6 | 37Mn | IS 7285-1 |
Indian Standard · IS23238–52 L · 9 models
| OD (mm) | Capacity (L) | Height* (mm) | Weight* (kg) | WP | TP | Wall (mm) | Material | Standard |
|---|---|---|---|---|---|---|---|---|
| 232 | 38 | 1130 | 44 | 150 bar | 250 bar | 5.4 | 37Mn | IS 7285-2 |
| 232 | 40 | 1180 | 46 | 150 bar | 250 bar | 5.4 | 37Mn | IS 7285-2 |
| 232 | 43.3 | 1270 | 48.5 | 150 bar | 250 bar | 5.4 | 37Mn | IS 7285-2 |
| 232 | 45 | 1320 | 50 | 150 bar | 250 bar | 5.4 | 37Mn | IS 7285-2 |
| 232 | 46 | 1345 | 51 | 150 bar | 250 bar | 5.4 | 37Mn | IS 7285-2 |
| 232 | 46.7 | 1360 | 52 | 150 bar | 250 bar | 5.4 | 37Mn | IS 7285-2 |
| 232 | 47 | 1370 | 52 | 150 bar | 250 bar | 5.4 | 37Mn | IS 7285-2 |
| 232 | 50 | 1445 | 55 | 150 bar | 250 bar | 5.4 | 37Mn | IS 7285-2 |
| 232 | 52 | 1505 | 57 | 150 bar | 250 bar | 5.4 | 37Mn | IS 7285-2 |
DOT UN ISO9809-3 · UN ISO1596–18 L · 14 models
| OD (mm) | Capacity (L) | Height* (mm) | Weight* (kg) | WP | TP | Wall (mm) | Material | Standard |
|---|---|---|---|---|---|---|---|---|
| 159 | 6 | 425 | 9 | 150 bar | 250 bar | 4.2 | 37Mn | DOT UN ISO 9809-3 |
| 159 | 6.8 | 475 | 9.5 | 150 bar | 250 bar | 4.2 | 37Mn | DOT UN ISO 9809-3 |
| 159 | 7 | 485 | 10 | 150 bar | 250 bar | 4.2 | 37Mn | DOT UN ISO 9809-3 |
| 159 | 8 | 540 | 11 | 150 bar | 250 bar | 4.2 | 37Mn | DOT UN ISO 9809-3 |
| 159 | 9 | 600 | 12 | 150 bar | 250 bar | 4.2 | 37Mn | DOT UN ISO 9809-3 |
| 159 | 10 | 655 | 13 | 150 bar | 250 bar | 4.2 | 37Mn | DOT UN ISO 9809-3 |
| 159 | 12 | 770 | 15 | 150 bar | 250 bar | 4.2 | 37Mn | DOT UN ISO 9809-3 |
| 159 | 13 | 825 | 16 | 150 bar | 250 bar | 4.2 | 37Mn | DOT UN ISO 9809-3 |
| 159 | 13.4 | 845 | 16.5 | 150 bar | 250 bar | 4.2 | 37Mn | DOT UN ISO 9809-3 |
| 159 | 14 | 880 | 17 | 150 bar | 250 bar | 4.2 | 37Mn | DOT UN ISO 9809-3 |
| 159 | 15 | 940 | 18.5 | 150 bar | 250 bar | 4.2 | 37Mn | DOT UN ISO 9809-3 |
| 159 | 16 | 1000 | 19.5 | 150 bar | 250 bar | 4.2 | 37Mn | DOT UN ISO 9809-3 |
| 159 | 17 | 1055 | 20.5 | 150 bar | 250 bar | 4.2 | 37Mn | DOT UN ISO 9809-3 |
| 159 | 18 | 1110 | 21.5 | 150 bar | 250 bar | 4.2 | 37Mn | DOT UN ISO 9809-3 |
DOT UN ISO9809-1 · UN ISO22938–55 L · 39 models
| OD (mm) | Capacity (L) | Height* (mm) | Weight* (kg) | WP | TP | Wall (mm) | Material | Standard |
|---|---|---|---|---|---|---|---|---|
| 229 | 38 | 1145 | 42.5 | 174 bar | 261 bar | 5.4 | 34CrMo4 | DOT UN ISO 9809-1 |
| 229 | 40 | 1200 | 44 | 174 bar | 261 bar | 5.4 | 34CrMo4 | DOT UN ISO 9809-1 |
| 229 | 43.3 | 1280 | 47 | 174 bar | 261 bar | 5.4 | 34CrMo4 | DOT UN ISO 9809-1 |
| 229 | 43.6 | 1290 | 47.5 | 174 bar | 261 bar | 5.4 | 34CrMo4 | DOT UN ISO 9809-1 |
| 229 | 45 | 1335 | 49 | 174 bar | 261 bar | 5.4 | 34CrMo4 | DOT UN ISO 9809-1 |
| 229 | 46 | 1360 | 49.5 | 174 bar | 261 bar | 5.4 | 34CrMo4 | DOT UN ISO 9809-1 |
| 229 | 46.7 | 1380 | 50 | 174 bar | 261 bar | 5.4 | 34CrMo4 | DOT UN ISO 9809-1 |
| 229 | 47 | 1390 | 50.5 | 174 bar | 261 bar | 5.4 | 34CrMo4 | DOT UN ISO 9809-1 |
| 229 | 48 | 1415 | 51.5 | 174 bar | 261 bar | 5.4 | 34CrMo4 | DOT UN ISO 9809-1 |
| 229 | 48.8 | 1440 | 52.5 | 174 bar | 261 bar | 5.4 | 34CrMo4 | DOT UN ISO 9809-1 |
| 229 | 49 | 1440 | 52.5 | 174 bar | 261 bar | 5.4 | 34CrMo4 | DOT UN ISO 9809-1 |
| 229 | 50 | 1470 | 53.5 | 174 bar | 261 bar | 5.4 | 34CrMo4 | DOT UN ISO 9809-1 |
| 229 | 52 | 1520 | 55 | 174 bar | 261 bar | 5.4 | 34CrMo4 | DOT UN ISO 9809-1 |
| 229 | 40 | 1220 | 51 | 200 bar | 300 bar | 6.2 | 30CrMo | DOT UN ISO 9809-1 |
| 229 | 43.3 | 1310 | 54 | 200 bar | 300 bar | 6.2 | 30CrMo | DOT UN ISO 9809-1 |
| 229 | 43.6 | 1320 | 54.5 | 200 bar | 300 bar | 6.2 | 30CrMo | DOT UN ISO 9809-1 |
| 229 | 45 | 1355 | 56 | 200 bar | 300 bar | 6.2 | 30CrMo | DOT UN ISO 9809-1 |
| 229 | 46 | 1380 | 57 | 200 bar | 300 bar | 6.2 | 30CrMo | DOT UN ISO 9809-1 |
| 229 | 46.3 | 1390 | 57 | 200 bar | 300 bar | 6.2 | 30CrMo | DOT UN ISO 9809-1 |
| 229 | 46.7 | 1410 | 58 | 200 bar | 300 bar | 6.2 | 30CrMo | DOT UN ISO 9809-1 |
| 229 | 47 | 1410 | 58 | 200 bar | 300 bar | 6.2 | 30CrMo | DOT UN ISO 9809-1 |
| 229 | 48 | 1435 | 59 | 200 bar | 300 bar | 6.2 | 30CrMo | DOT UN ISO 9809-1 |
| 229 | 48.8 | 1460 | 60 | 200 bar | 300 bar | 6.2 | 30CrMo | DOT UN ISO 9809-1 |
| 229 | 49 | 1460 | 60 | 200 bar | 300 bar | 6.2 | 30CrMo | DOT UN ISO 9809-1 |
| 229 | 50 | 1490 | 62 | 200 bar | 300 bar | 6.2 | 30CrMo | DOT UN ISO 9809-1 |
| 229 | 55 | 1625 | 66 | 200 bar | 300 bar | 6.2 | 30CrMo | DOT UN ISO 9809-1 |
| 229 | 40 | 1240 | 57.5 | 300 bar | 451 bar | 6.95 | 34CrMo4 | DOT UN ISO 9809-1 |
| 229 | 43.3 | 1330 | 61.5 | 300 bar | 451 bar | 6.95 | 34CrMo4 | DOT UN ISO 9809-1 |
| 229 | 43.6 | 1340 | 62 | 300 bar | 451 bar | 6.95 | 34CrMo4 | DOT UN ISO 9809-1 |
| 229 | 45 | 1380 | 63.5 | 300 bar | 451 bar | 6.95 | 34CrMo4 | DOT UN ISO 9809-1 |
| 229 | 46 | 1410 | 64.5 | 300 bar | 451 bar | 6.95 | 34CrMo4 | DOT UN ISO 9809-1 |
| 229 | 46.3 | 1420 | 65 | 300 bar | 451 bar | 6.95 | 34CrMo4 | DOT UN ISO 9809-1 |
| 229 | 46.7 | 1430 | 65.2 | 300 bar | 451 bar | 6.95 | 34CrMo4 | DOT UN ISO 9809-1 |
| 229 | 47 | 1435 | 65.5 | 300 bar | 451 bar | 6.95 | 34CrMo4 | DOT UN ISO 9809-1 |
| 229 | 48 | 1465 | 66.5 | 300 bar | 451 bar | 6.95 | 34CrMo4 | DOT UN ISO 9809-1 |
| 229 | 48.8 | 1490 | 68 | 300 bar | 451 bar | 6.95 | 34CrMo4 | DOT UN ISO 9809-1 |
| 229 | 49 | 1490 | 68 | 300 bar | 451 bar | 6.95 | 34CrMo4 | DOT UN ISO 9809-1 |
| 229 | 50 | 1520 | 69 | 300 bar | 451 bar | 6.95 | 34CrMo4 | DOT UN ISO 9809-1 |
| 229 | 55 | 1660 | 75 | 300 bar | 451 bar | 6.95 | 34CrMo4 | DOT UN ISO 9809-1 |
DOT UN ISO9809-1 · UN ISO23238–52 L · 23 models
| OD (mm) | Capacity (L) | Height* (mm) | Weight* (kg) | WP | TP | Wall (mm) | Material | Standard |
|---|---|---|---|---|---|---|---|---|
| 232 | 38 | 1130 | 42 | 150/166 bar | 250 bar | 5.4 | 37Mn | DOT UN ISO 9809-1 |
| 232 | 40 | 1180 | 44 | 150/166 bar | 250 bar | 5.4 | 37Mn | DOT UN ISO 9809-1 |
| 232 | 43.3 | 1270 | 46 | 150/166 bar | 250 bar | 5.4 | 37Mn | DOT UN ISO 9809-1 |
| 232 | 43.6 | 1275 | 46.5 | 150/166 bar | 250 bar | 5.4 | 37Mn | DOT UN ISO 9809-1 |
| 232 | 45 | 1320 | 48 | 150/166 bar | 250 bar | 5.4 | 37Mn | DOT UN ISO 9809-1 |
| 232 | 46 | 1345 | 49 | 150/166 bar | 250 bar | 5.4 | 37Mn | DOT UN ISO 9809-1 |
| 232 | 46.7 | 1360 | 49.5 | 150/166 bar | 250 bar | 5.4 | 37Mn | DOT UN ISO 9809-1 |
| 232 | 47 | 1370 | 50 | 150/166 bar | 250 bar | 5.4 | 37Mn | DOT UN ISO 9809-1 |
| 232 | 50 | 1445 | 53 | 150/166 bar | 250 bar | 5.4 | 37Mn | DOT UN ISO 9809-1 |
| 232 | 52 | 1505 | 55 | 150/166 bar | 250 bar | 5.4 | 37Mn | DOT UN ISO 9809-1 |
| 232 | 38 | 1135 | 45 | 184 bar | 276 bar | 5.8 | 34CrMo4 | DOT UN ISO 9809-1 |
| 232 | 40 | 1190 | 47 | 184 bar | 276 bar | 5.8 | 34CrMo4 | DOT UN ISO 9809-1 |
| 232 | 43.3 | 1270 | 50 | 184 bar | 276 bar | 5.8 | 34CrMo4 | DOT UN ISO 9809-1 |
| 232 | 43.6 | 1280 | 50.5 | 184 bar | 276 bar | 5.8 | 34CrMo4 | DOT UN ISO 9809-1 |
| 232 | 45 | 1320 | 52 | 184 bar | 276 bar | 5.8 | 34CrMo4 | DOT UN ISO 9809-1 |
| 232 | 46 | 1345 | 53 | 184 bar | 276 bar | 5.8 | 34CrMo4 | DOT UN ISO 9809-1 |
| 232 | 46.7 | 1370 | 54 | 184 bar | 276 bar | 5.8 | 34CrMo4 | DOT UN ISO 9809-1 |
| 232 | 47 | 1370 | 54 | 184 bar | 276 bar | 5.8 | 34CrMo4 | DOT UN ISO 9809-1 |
| 232 | 48 | 1395 | 55 | 184 bar | 276 bar | 5.8 | 34CrMo4 | DOT UN ISO 9809-1 |
| 232 | 48.8 | 1420 | 56 | 184 bar | 276 bar | 5.8 | 34CrMo4 | DOT UN ISO 9809-1 |
| 232 | 49 | 1420 | 56 | 184 bar | 276 bar | 5.8 | 34CrMo4 | DOT UN ISO 9809-1 |
| 232 | 50 | 1450 | 57 | 184 bar | 276 bar | 5.8 | 34CrMo4 | DOT UN ISO 9809-1 |
| 232 | 52 | 1500 | 59 | 184 bar | 276 bar | 5.8 | 34CrMo4 | DOT UN ISO 9809-1 |
DOT-3AA · DOT22943.3–50 L · 8 models
| OD (mm) | Capacity (L) | Height* (mm) | Weight* (kg) | WP | TP | Wall (mm) | Material | Standard |
|---|---|---|---|---|---|---|---|---|
| 229 | 43.3 | 1280 | 47 | 2265 psi | 3775 psi | 5.4 | 34CrMo4 | DOT-3AA |
| 229 | 46.7 | 1380 | 50 | 2265 psi | 3775 psi | 5.4 | 34CrMo4 | DOT-3AA |
| 229 | 48.8 | 1440 | 52.5 | 2265 psi | 3775 psi | 5.4 | 34CrMo4 | DOT-3AA |
| 229 | 50 | 1470 | 53.5 | 2265 psi | 3775 psi | 5.4 | 34CrMo4 | DOT-3AA |
| 229 | 43.3 | 1310 | 54 | 2400 psi | 4000 psi | 6.2 | 30CrMo | DOT-3AA |
| 229 | 46.7 | 1400 | 58 | 2400 psi | 4000 psi | 6.2 | 30CrMo | DOT-3AA |
| 229 | 48.8 | 1460 | 60 | 2400 psi | 4000 psi | 6.2 | 30CrMo | DOT-3AA |
| 229 | 50 | 1490 | 61 | 2400 psi | 4000 psi | 6.2 | 30CrMo | DOT-3AA |
DOT-3AA · DOT23240–50 L · 10 models
| OD (mm) | Capacity (L) | Height* (mm) | Weight* (kg) | WP | TP | Wall (mm) | Material | Standard |
|---|---|---|---|---|---|---|---|---|
| 232 | 40 | 1185 | 45 | 2175 psi | 3625 psi | 5.4 | 37Mn | DOT-3AA |
| 232 | 43.3 | 1270 | 47.5 | 2175 psi | 3625 psi | 5.4 | 37Mn | DOT-3AA |
| 232 | 46.7 | 1360 | 50.7 | 2175 psi | 3625 psi | 5.4 | 37Mn | DOT-3AA |
| 232 | 47 | 1370 | 51 | 2175 psi | 3625 psi | 5.4 | 37Mn | DOT-3AA |
| 232 | 48.8 | 1410 | 52.5 | 2175 psi | 3625 psi | 5.4 | 37Mn | DOT-3AA |
| 232 | 50 | 1435 | 53 | 2175 psi | 3625 psi | 5.4 | 37Mn | DOT-3AA |
| 232 | 43.3 | 1270 | 50 | 2400 psi | 4000 psi | 5.8 | 34CrMo4 | DOT-3AA |
| 232 | 46.7 | 1370 | 54 | 2400 psi | 4000 psi | 5.8 | 34CrMo4 | DOT-3AA |
| 232 | 48.8 | 1420 | 56 | 2400 psi | 4000 psi | 5.8 | 34CrMo4 | DOT-3AA |
| 232 | 50 | 1450 | 57 | 2400 psi | 4000 psi | 5.8 | 34CrMo4 | DOT-3AA |
DOT-3AA · DOT26750–82.5 L · 10 models
| OD (mm) | Capacity (L) | Height* (mm) | Weight* (kg) | WP | TP | Wall (mm) | Material | Standard |
|---|---|---|---|---|---|---|---|---|
| 267 | 50 | 1145 | 57 | 2175 psi | 3625 psi | 6.2 | 37Mn | DOT-3AA |
| 267 | 58 | 1300 | 63.5 | 2175 psi | 3625 psi | 6.2 | 37Mn | DOT-3AA |
| 267 | 60 | 1335 | 65 | 2175 psi | 3625 psi | 6.2 | 37Mn | DOT-3AA |
| 267 | 65 | 1430 | 69 | 2175 psi | 3625 psi | 6.2 | 37Mn | DOT-3AA |
| 267 | 67.5 | 1470 | 71.5 | 2175 psi | 3625 psi | 6.2 | 37Mn | DOT-3AA |
| 267 | 68 | 1480 | 72 | 2175 psi | 3625 psi | 6.2 | 37Mn | DOT-3AA |
| 267 | 75 | 1620 | 77 | 2175 psi | 3625 psi | 6.2 | 37Mn | DOT-3AA |
| 267 | 77 | 1660 | 78.5 | 2175 psi | 3625 psi | 6.2 | 37Mn | DOT-3AA |
| 267 | 80 | 1715 | 81 | 2175 psi | 3625 psi | 6.2 | 37Mn | DOT-3AA |
| 267 | 82.5 | 1760 | 83 | 2175 psi | 3625 psi | 6.2 | 37Mn | DOT-3AA |
* Height excludes the valve. Weight excludes the valve and cap unless otherwise stated. Catalog values are reference data; final drawings, markings, valve configuration, pressure rating and certification scope are confirmed before order.
Key product pages
Select a commonly requested capacity.
These focused pages remain available for important buyer and search requirements. Use the full series tables above when you need another catalog configuration.
3L Seamless Steel Gas Cylinder
150 / 166.7 / 200 / 210 bar options
View specifications →
6L Seamless Steel Gas Cylinder
150 / 166.7 / 200 bar options
View specifications →
7L Seamless Steel Gas Cylinder
150 / 166.7 / 200 bar options
View specifications →
8L Seamless Steel Gas Cylinder
150 / 166.7 / 200 bar options
View specifications →
9L Seamless Steel Gas Cylinder
150 / 166.7 / 200 bar options
View specifications →
10L Seamless Steel Gas Cylinder
150 / 166.7 / 200 bar options
View specifications →
12L Seamless Steel Gas Cylinder
150 / 166.7 / 200 bar options
View specifications →
15L Seamless Steel Gas Cylinder
150 / 166.7 / 200 bar options
View specifications →
18L Seamless Steel Gas Cylinder
150 / 166.7 / 200 bar options
View specifications →
20L Seamless Steel Gas Cylinder
150 / 166.7 / 200 bar options
View specifications →
40L 150 Bar Seamless Steel Gas Cylinder
150 bar
View specifications →
47L 150 Bar Seamless Steel Gas Cylinder
150 bar
View specifications →
50L 200 Bar Seamless Steel Gas Cylinder
200 bar
View specifications →
68L 150 Bar Seamless Steel Gas Cylinder
150 / 166.7 bar
View specifications →The complete catalog range extends from 1.5 L to 150 L. These are the currently illustrated key capacities; additional catalog models can be quoted against your required diameter, pressure and standard.
Reference data
Technical selection guide
Published values describe the available product family. The final drawing, dimensions, pressure, valve, marking and certification follow the confirmed model and order.
- Water capacity
- 1.5–150 L catalog range
- Working pressure
- 150 / 166.7 / 200 / 230 / 250 / 300 bar, by model
- Typical materials
- 37Mn, 34CrMo4 or 30CrMo seamless steel
- Common standards
- ISO 9809, GB/T 5099, DOT-3AA, DOT UN ISO and IS 7285, by certified model
- Typical gases
- O₂, N₂, Ar, CO₂, He and specialty gases
- Options
- Valve, cap, neck ring, colour, marking and export packing
Quick selection guide
What the buyer should confirm
- Gas service and water capacity
- Working pressure and outside diameter
- Applicable standard and destination
- Valve thread, marking and packing
Configuration options
Order-specific choices
- Valve and neck-thread options
- Colour, shoulder marking and logo
- Cap, guard, handle or foot ring
- Pallet, crate and container-loading coordination
Typical applications
Built around real operating requirements.
STANDARD FAMILIESISO 9809 · GB/T 5099 · DOT-3AA · DOT UN ISO · IS 7285
Availability depends on the selected model, certificate scope and destination-market requirements. Please confirm the required approval before ordering.
Project enquiry
Tell Us What You Need
Include the application or gas, capacity, pressure, required standard, quantity and destination for a more accurate proposal.
Request a Quote
